⚙️ Main Specifications

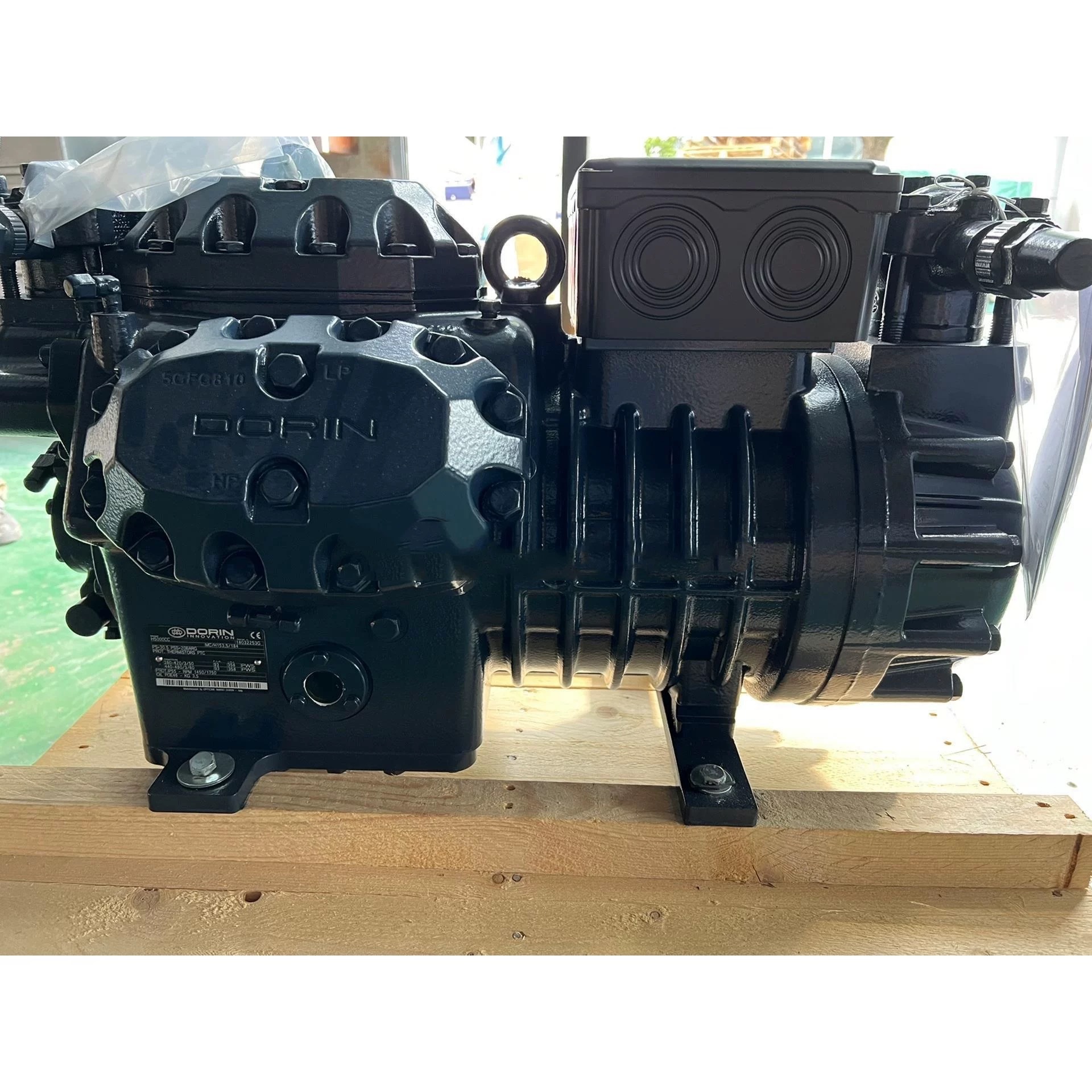

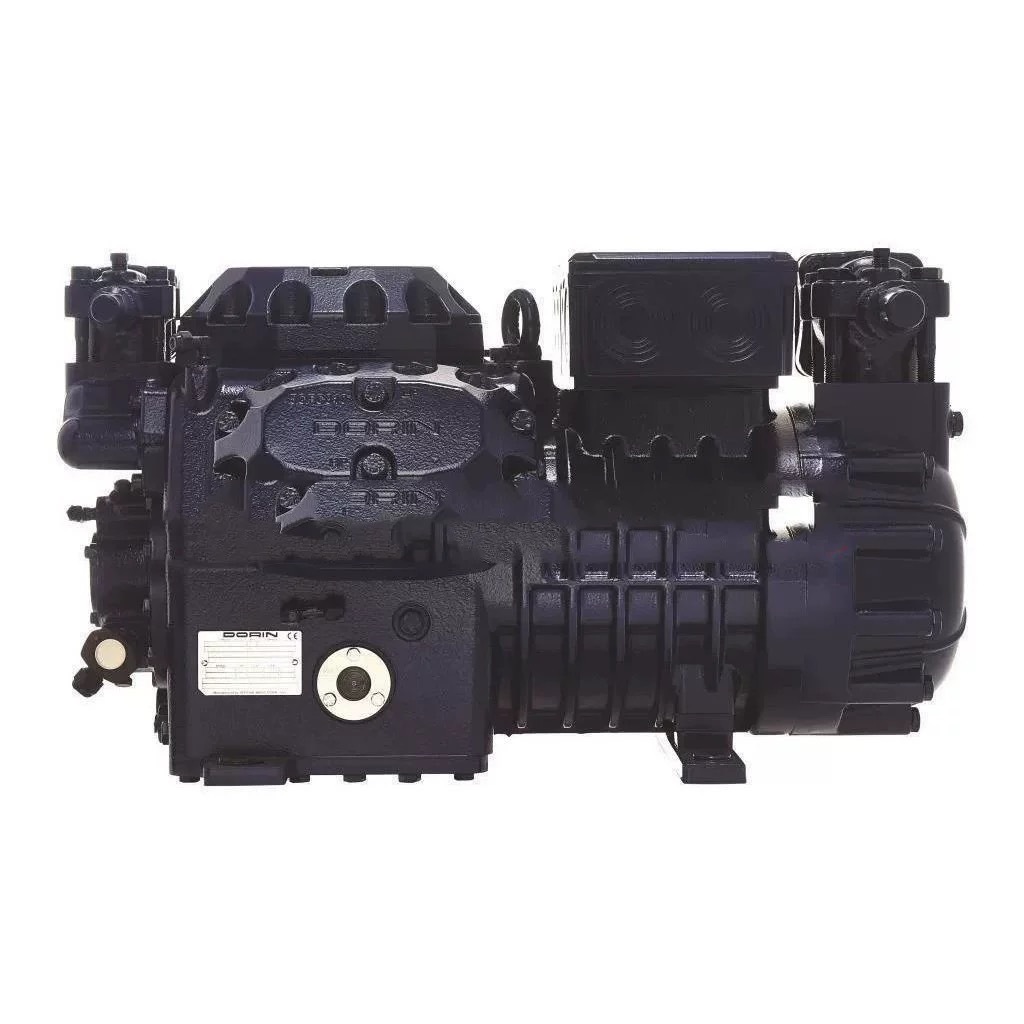

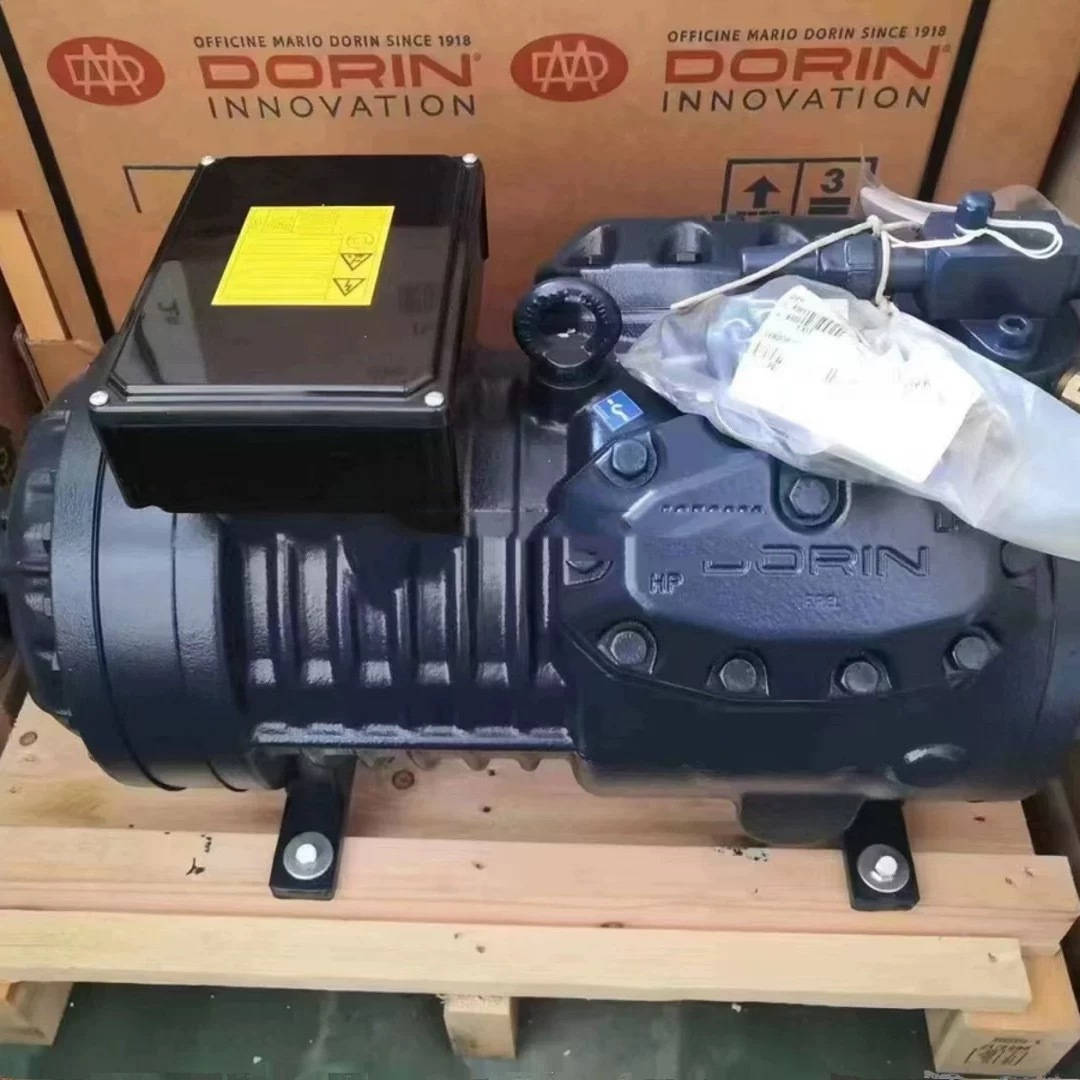

🔹 Model: HEX8001CC
🔹 Brand: Dorin
🔹 Series: HEX7
🔹 Type: Semi-Hermetic Reciprocating ATEX Compressor
🔹 Number of Cylinders: 8
🔹 Displacement @ 50 Hz: 221.75 m³/h
🔹 Displacement @ 60 Hz: 266.10 m³/h
🔹 Bore: 79 mm
🔹 Stroke: 65 mm
🔹 Oil Charge: 8.5 L
🔹 Suction Valve: 80 mm
🔹 Discharge Valve: 54 mm
🔹 Net Weight: 357 kg
🔹 Maximum Absorbed Power @ 50 Hz: 85.8 kW
🔹 Maximum Absorbed Power @ 60 Hz: 103.0 kW Dorin
🏭 Typical Applications
The HEX8001CC is suitable for demanding commercial and industrial refrigeration applications, including:
❄️ Large cold storage facilities
❄️ Industrial refrigeration plants
❄️ Large walk-in chillers and freezers
❄️ Food processing facilities
❄️ Meat and seafood processing
❄️ Refrigerated warehouses
❄️ Logistics and distribution centres
❄️ Supermarket and hypermarket refrigeration
❄️ Marine refrigeration systems
❄️ Industrial applications requiring ATEX-compatible equipment
Dorin identifies commercial refrigeration, industrial refrigeration, marine systems and logistics centres among the applications for its compressor range. Dorin
Correct compressor selection should be based on the required refrigeration capacity, refrigerant, evaporating temperature, condensing temperature, electrical supply and installation environment.
🚚 Shipping & Availability
✅ Standard 50 Hz configurations available
⚙️ 60 Hz and special-voltage configurations available on request
📦 Export-grade packaging for international shipping
🚢 Sea freight options available
✈️ Air freight options available depending on destination
🌍 Worldwide shipping available
Please note: The listed product price does not include shipping.
Contact us with your destination country, city or nearest port to confirm shipping costs.
📥 Technical Support
Contact us for compressor selection, refrigeration capacity, operating conditions, refrigerant selection, voltage requirements, ATEX requirements and international shipping.
