⚙️ Main Specifications

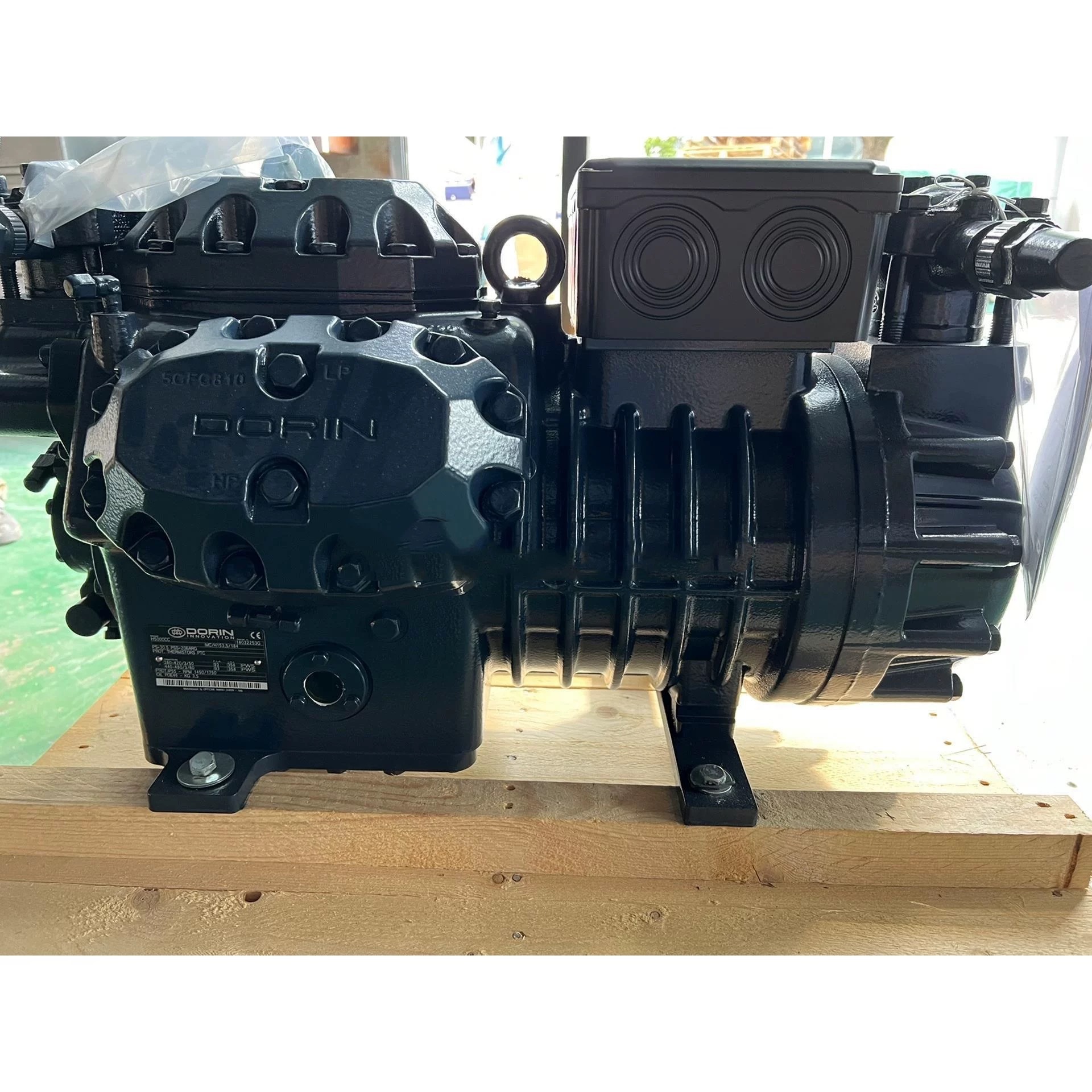

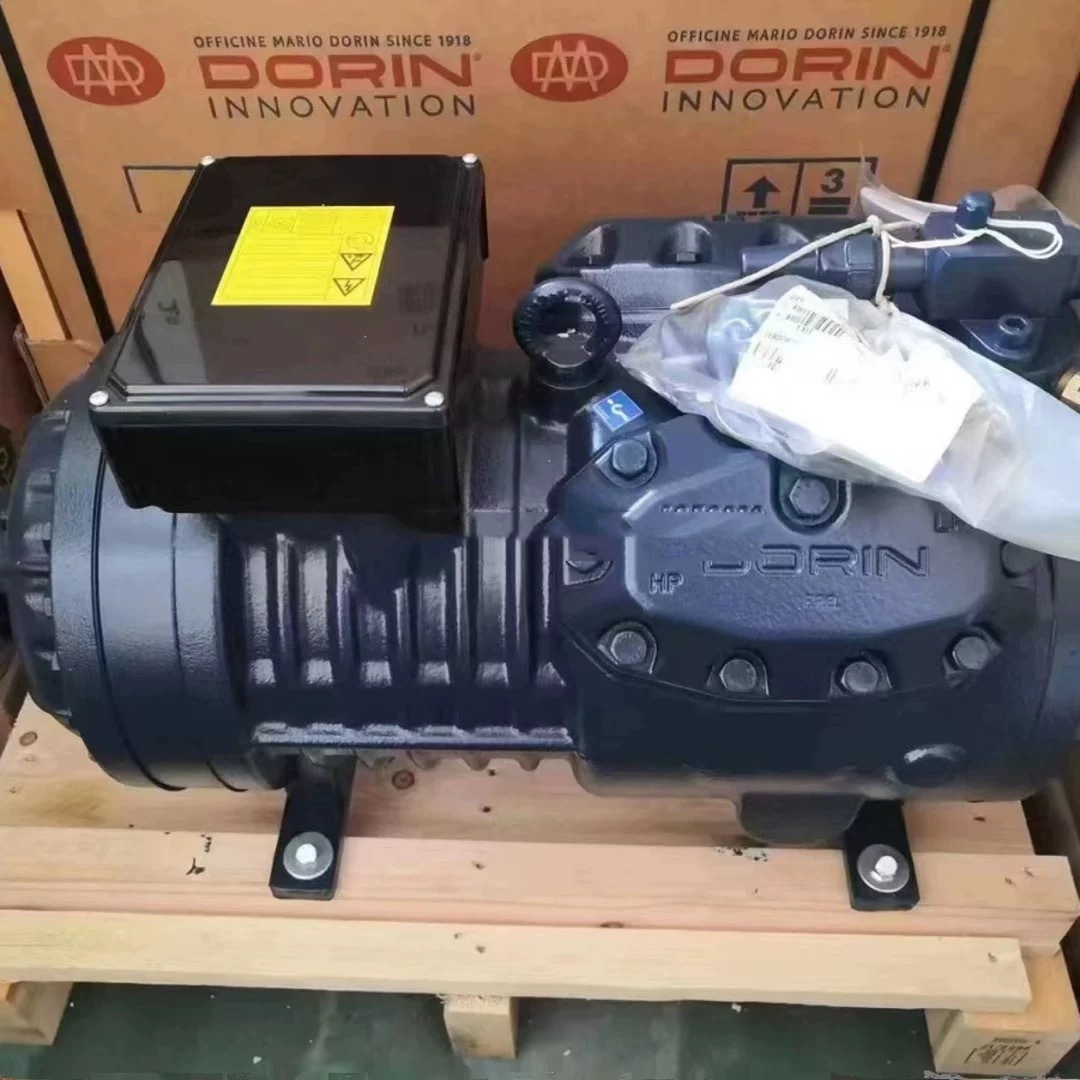

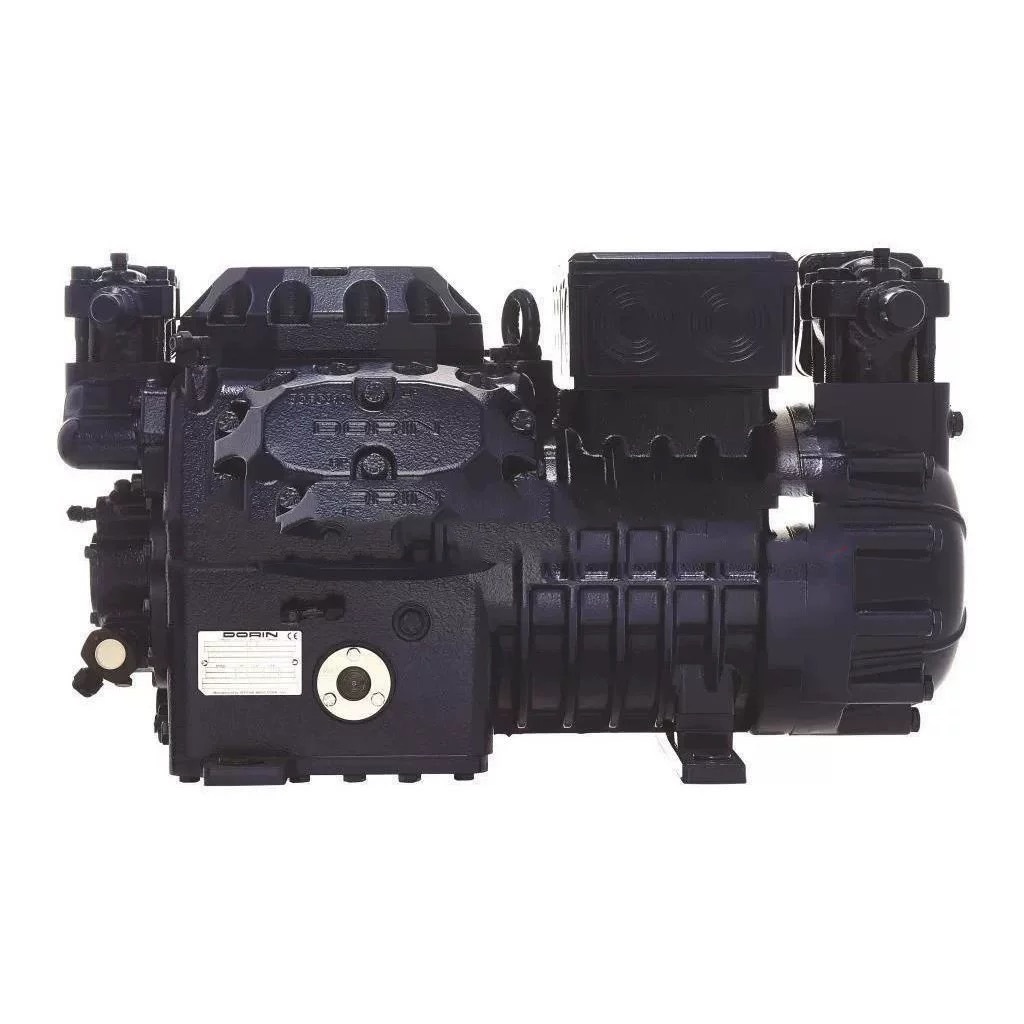

🔹 Model: HEX8000CS
🔹 Brand: Dorin
🔹 Series: HEX7
🔹 Type: Semi-Hermetic Reciprocating Compressor
🔹 Number of Cylinders: 8
🔹 Displacement @ 50 Hz: 244.78 m³/h
🔹 Displacement @ 60 Hz: 293.74 m³/h
🔹 Bore: 83 mm
🔹 Stroke: 65 mm
🔹 Oil Charge: 8.5 L
🔹 Suction Valve: 80 mm
🔹 Discharge Valve: 54 mm
🔹 Net Weight: 360 kg
The corresponding Dorin compressor platform lists these mechanical specifications for the 8-cylinder 8000CS configuration. Dorin
🏭 Typical Applications
The HEX8000CS is suitable for large commercial and industrial refrigeration applications, including:
❄️ Large cold storage facilities
❄️ Industrial refrigeration plants
❄️ Large walk-in chillers and freezers
❄️ Food processing plants
❄️ Meat and seafood processing facilities
❄️ Supermarket and hypermarket refrigeration
❄️ Refrigerated warehouses
❄️ Logistics and distribution centres
❄️ Marine refrigeration systems
❄️ Ice cream production and storage
❄️ Large refrigeration rack systems
Dorin identifies commercial refrigeration, industrial refrigeration, marine applications, food processing and logistics among the application areas for its semi-hermetic compressors. Dorin
Correct compressor selection should be based on the required refrigeration capacity, refrigerant, evaporating temperature, condensing temperature and electrical supply.
🚚 Shipping & Availability
✅ 50 Hz configurations available
⚙️ 60 Hz and special-voltage configurations available depending on project requirements
📦 Export-grade packaging for international shipping
🚢 Sea freight options available
✈️ Air freight options available depending on destination
🌍 Worldwide shipping available
Please note: The listed product price does not include shipping.
Contact us with your destination country, city or nearest port to confirm shipping costs.
📥 Technical Support
Contact us for compressor selection, refrigeration capacity, operating conditions, refrigerant selection, voltage requirements and international shipping.
