⚙️ Main Specifications

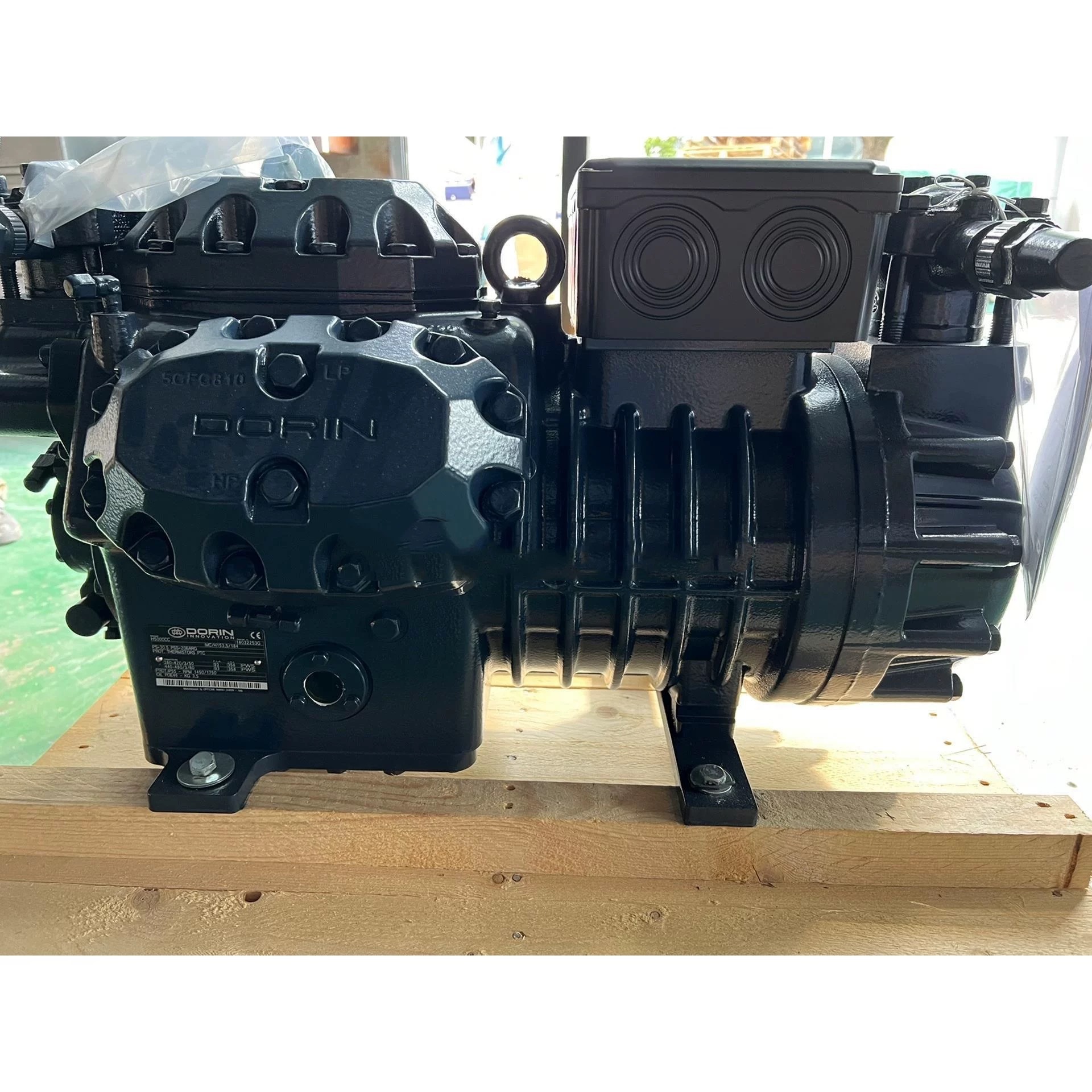

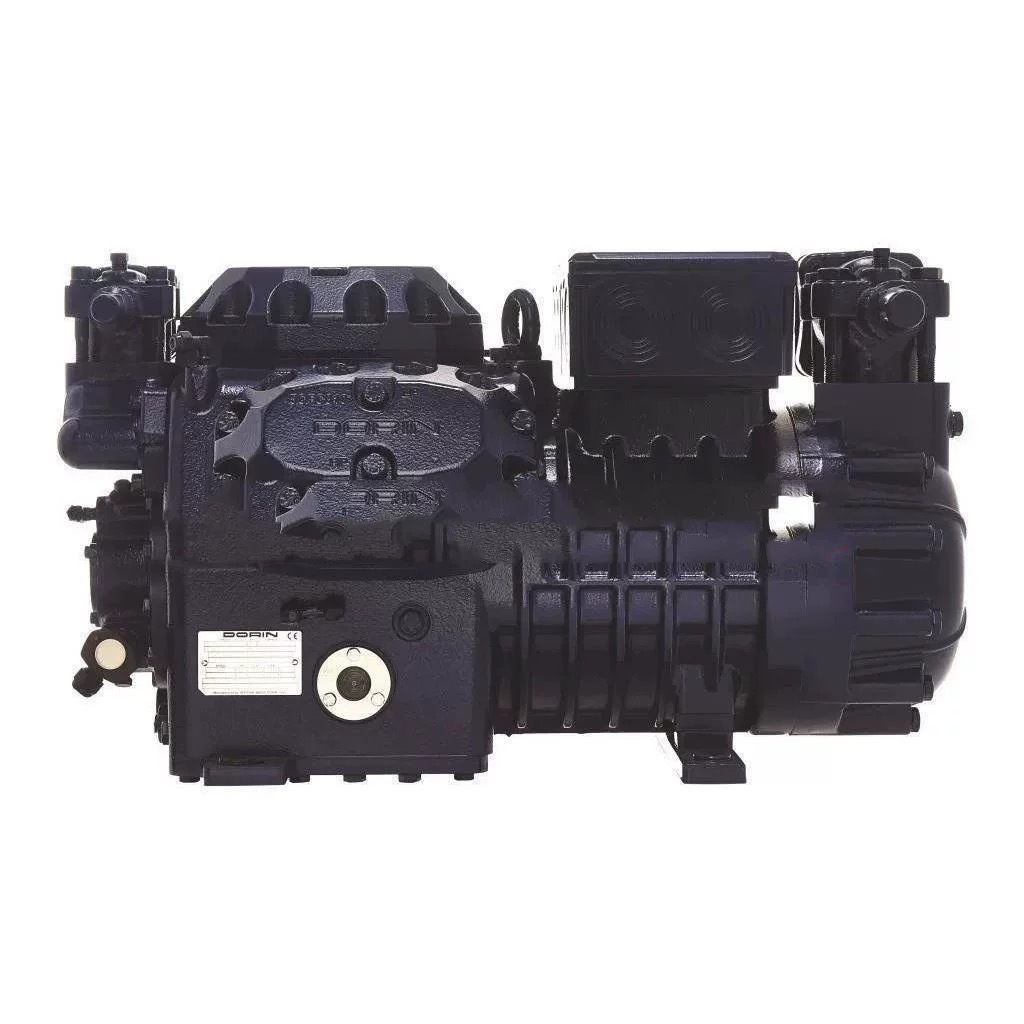

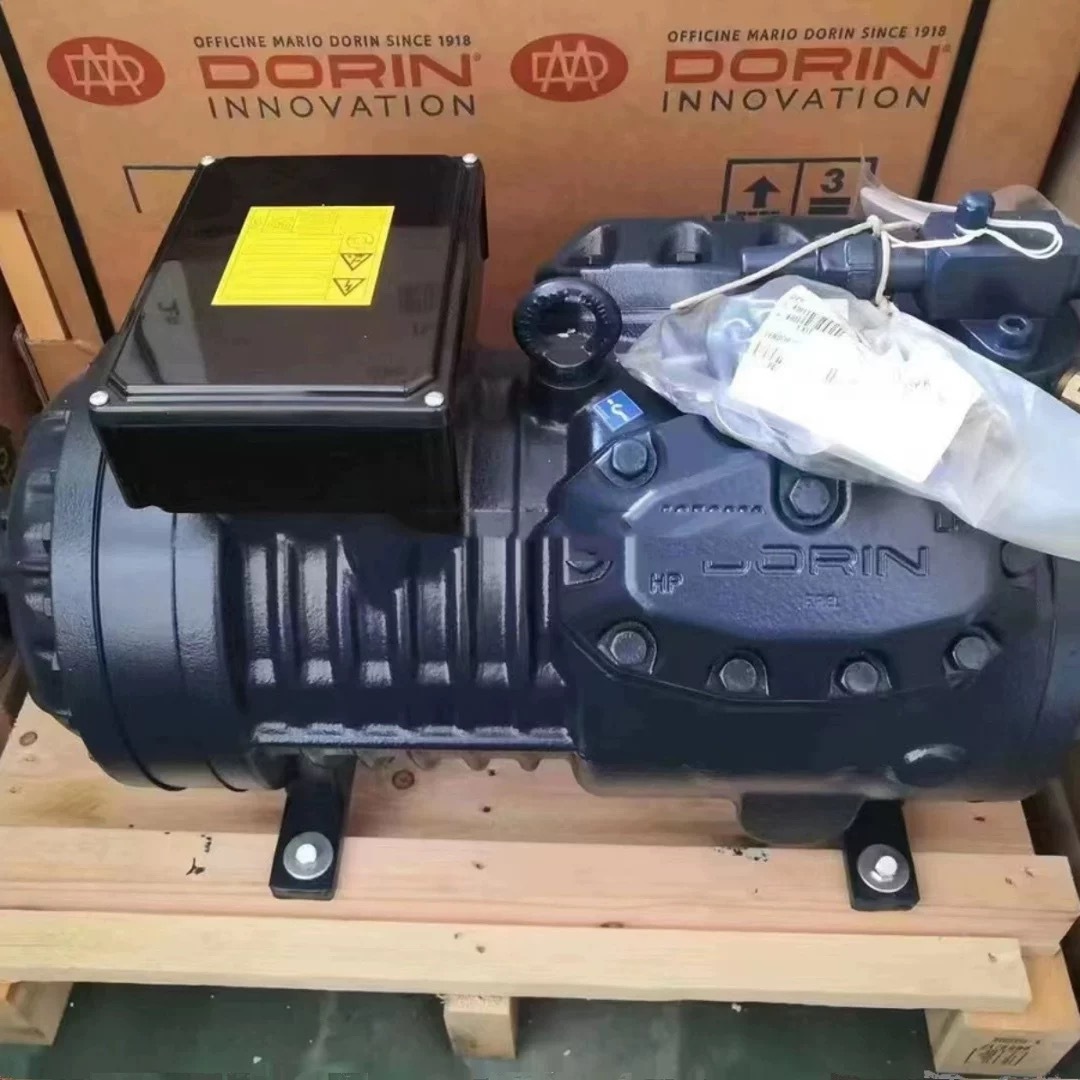

🔹 Model: HEX7500CC
🔹 Brand: Dorin
🔹 Series: HEX7
🔹 Type: Semi-Hermetic Reciprocating Compressor
🔹 Number of Cylinders: 8
🔹 Displacement @ 50 Hz: 199.86 m³/h
🔹 Displacement @ 60 Hz: 239.83 m³/h
🔹 Bore: 75 mm
🔹 Stroke: 65 mm
🔹 Oil Charge: 8.5 L
🔹 Suction Valve: 80 mm
🔹 Discharge Valve: 42 mm
🔹 Net Weight: 357 kg
🔹 Maximum Absorbed Power @ 50 Hz: 85.8 kW
🔹 Maximum Absorbed Power @ 60 Hz: 103.0 kW Dorin
🏭 Typical Applications
The HEX7500CC is suitable for demanding commercial and industrial refrigeration applications, including:
❄️ Large cold storage facilities
❄️ Industrial refrigeration plants
❄️ Large walk-in chillers and freezers
❄️ Food processing plants
❄️ Meat and seafood processing facilities
❄️ Supermarket and hypermarket refrigeration
❄️ Refrigerated warehouses
❄️ Logistics and distribution centres
❄️ Marine refrigeration systems
❄️ Ice cream production and storage
Dorin identifies commercial refrigeration, industrial refrigeration, marine systems and logistics centres among the applications for its compressor range. Dorin
Correct compressor selection should be based on the required refrigeration capacity, refrigerant, evaporating temperature, condensing temperature and electrical supply.
🚚 Shipping & Availability
✅ Standard 50 Hz configurations available
⚙️ 60 Hz and special-voltage configurations available on request
📦 Export-grade packaging for international shipping
🚢 Sea freight options available
✈️ Air freight options available depending on destination
🌍 Worldwide shipping available
Please note: The listed product price does not include shipping.
Contact us with your destination country, city or nearest port to confirm shipping costs.
📥 Technical Support
Contact us for compressor selection, refrigeration capacity, operating conditions, refrigerant selection, voltage requirements and international shipping.
