⚙️ Main Specifications

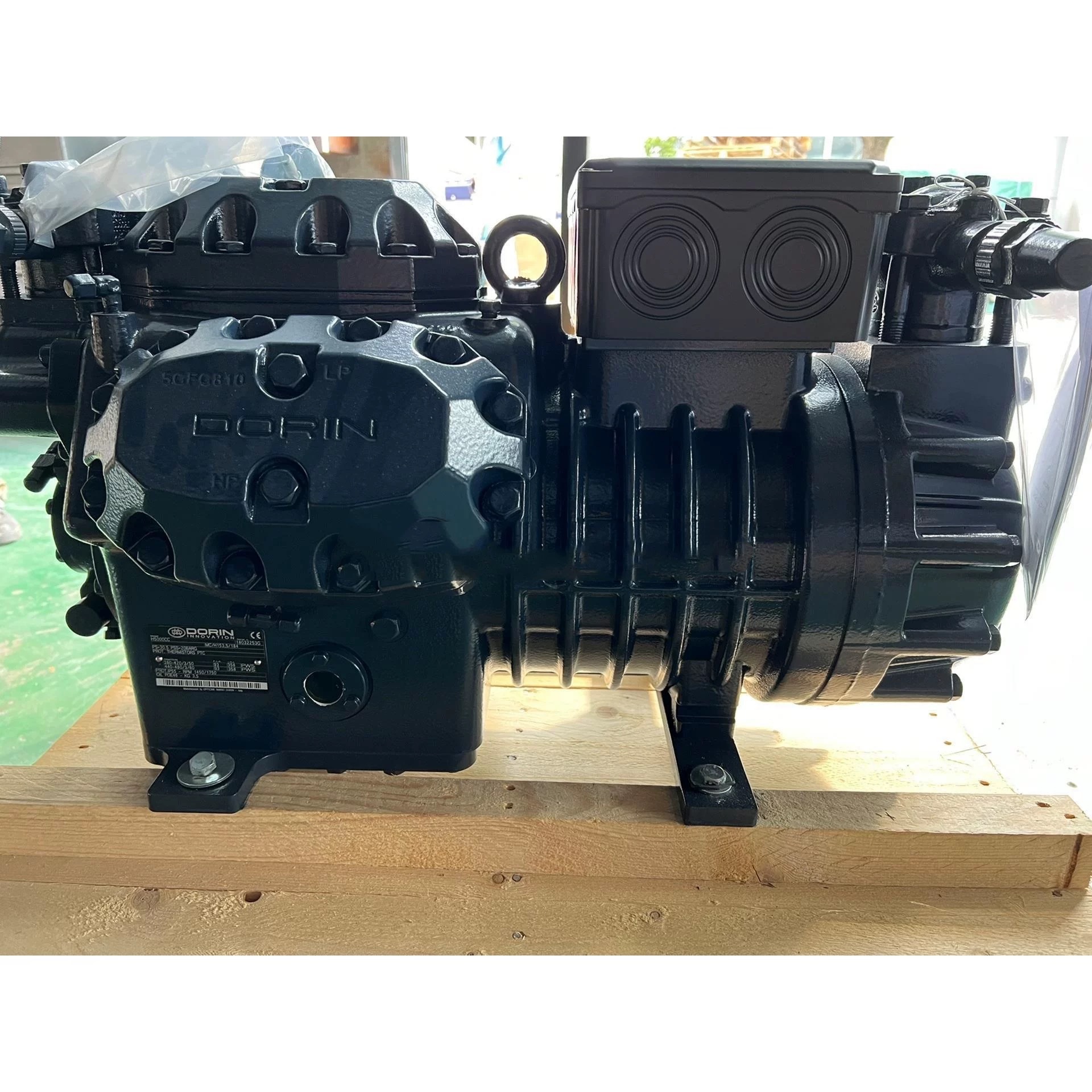

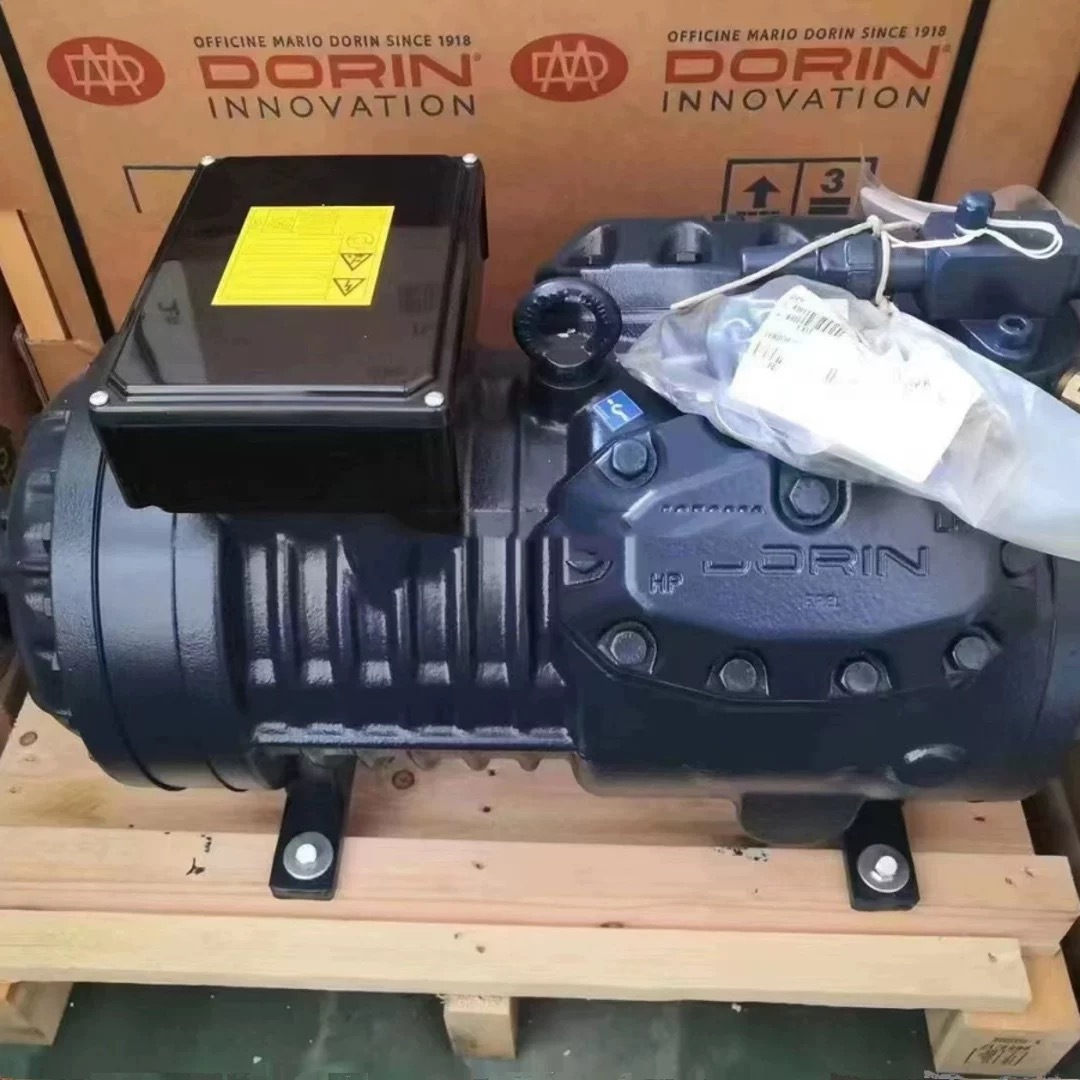

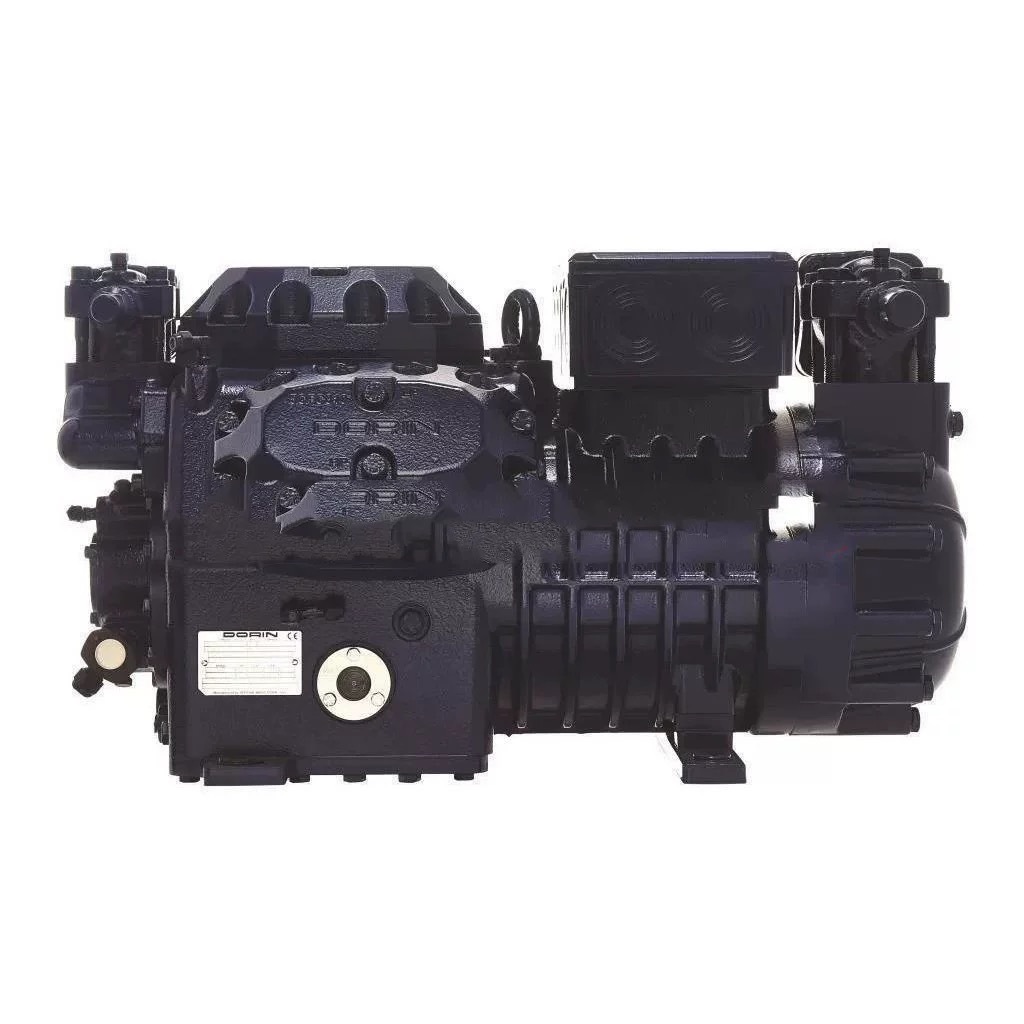

🔹 Model: HEX3000CS
🔹 Series: HEX6
🔹 Type: Semi-Hermetic Reciprocating Compressor
🔹 Number of Cylinders: 6
🔹 Displacement @ 50 Hz: 113.74 m³/h
🔹 Displacement @ 60 Hz: 136.49 m³/h
🔹 Bore: 68 mm
🔹 Stroke: 60 mm
🔹 Oil Charge: 3.5 L
🔹 Suction Valve: 54 mm
🔹 Discharge Valve: 35 mm
🔹 Net Weight: 235 kg
🔹 Maximum Absorbed Power @ 50 Hz: 35.9 kW
🔹 Maximum Absorbed Power @ 60 Hz: 43.1 kW
🏭 Typical Applications
The HEX3000CS is suitable for a wide range of commercial and industrial refrigeration applications, including:
❄️ Cold storage facilities
❄️ Industrial refrigeration systems
❄️ Walk-in chillers and freezers
❄️ Food processing plants
❄️ Meat processing facilities
❄️ Seafood processing facilities
❄️ Supermarkets and distribution centres
❄️ Refrigerated warehouses
❄️ Logistics centres
❄️ Marine refrigeration systems
The correct compressor selection depends on the required cooling capacity, refrigerant, evaporating temperature, condensing temperature and electrical supply.
🚚 Shipping & Availability
✅ Standard 50 Hz configurations available
⚙️ 60 Hz and special-voltage configurations available on request
📦 Export-grade packaging for international shipping
🌍 Worldwide air and sea freight options available
📥 Technical Support
Contact us for compressor selection, refrigeration capacity, operating conditions, refrigerant selection, voltage requirements and international shipping.
