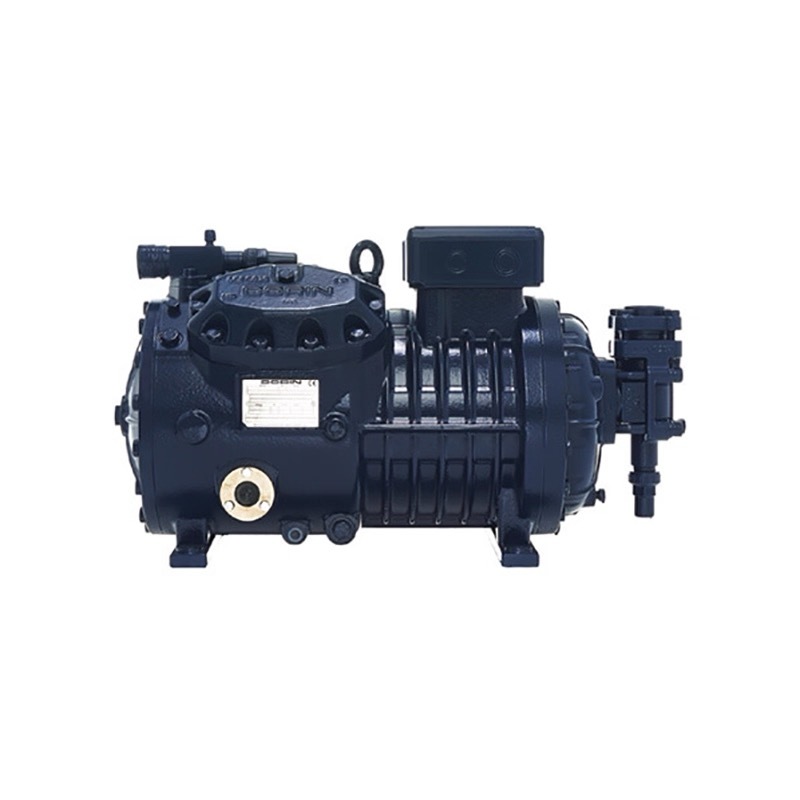

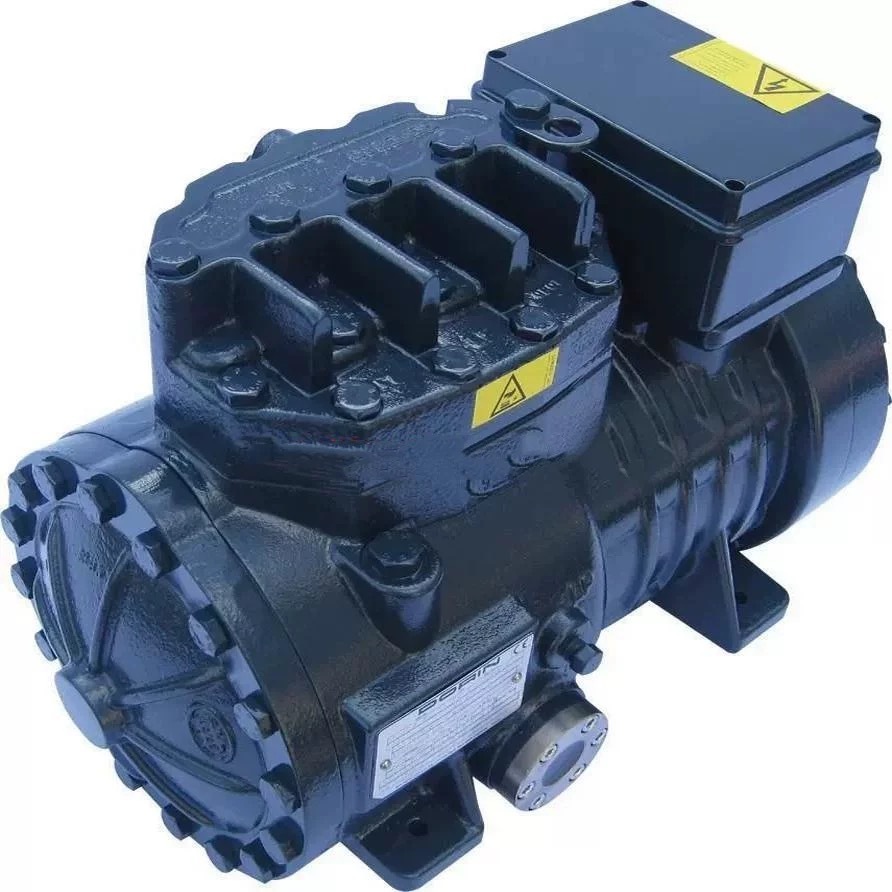

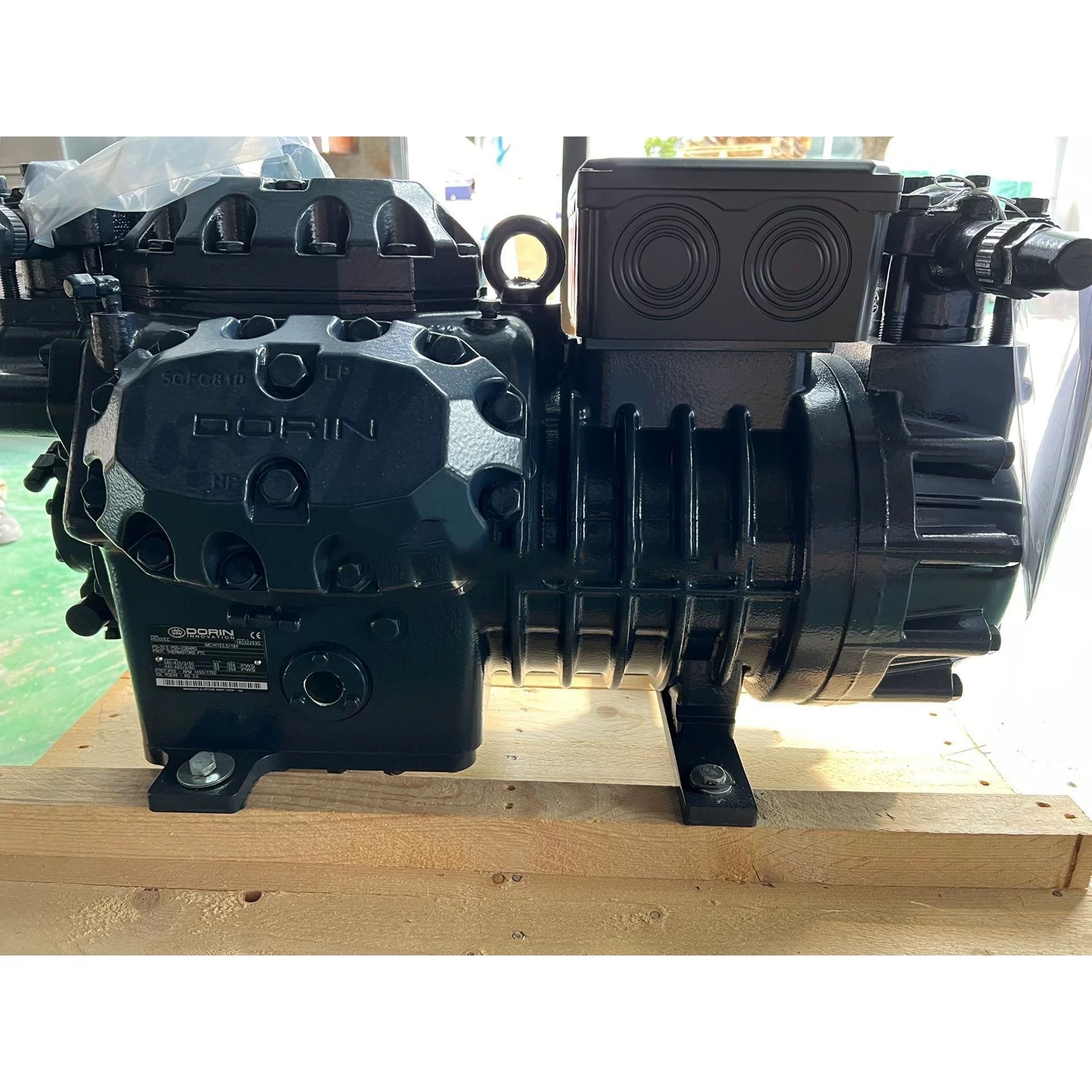

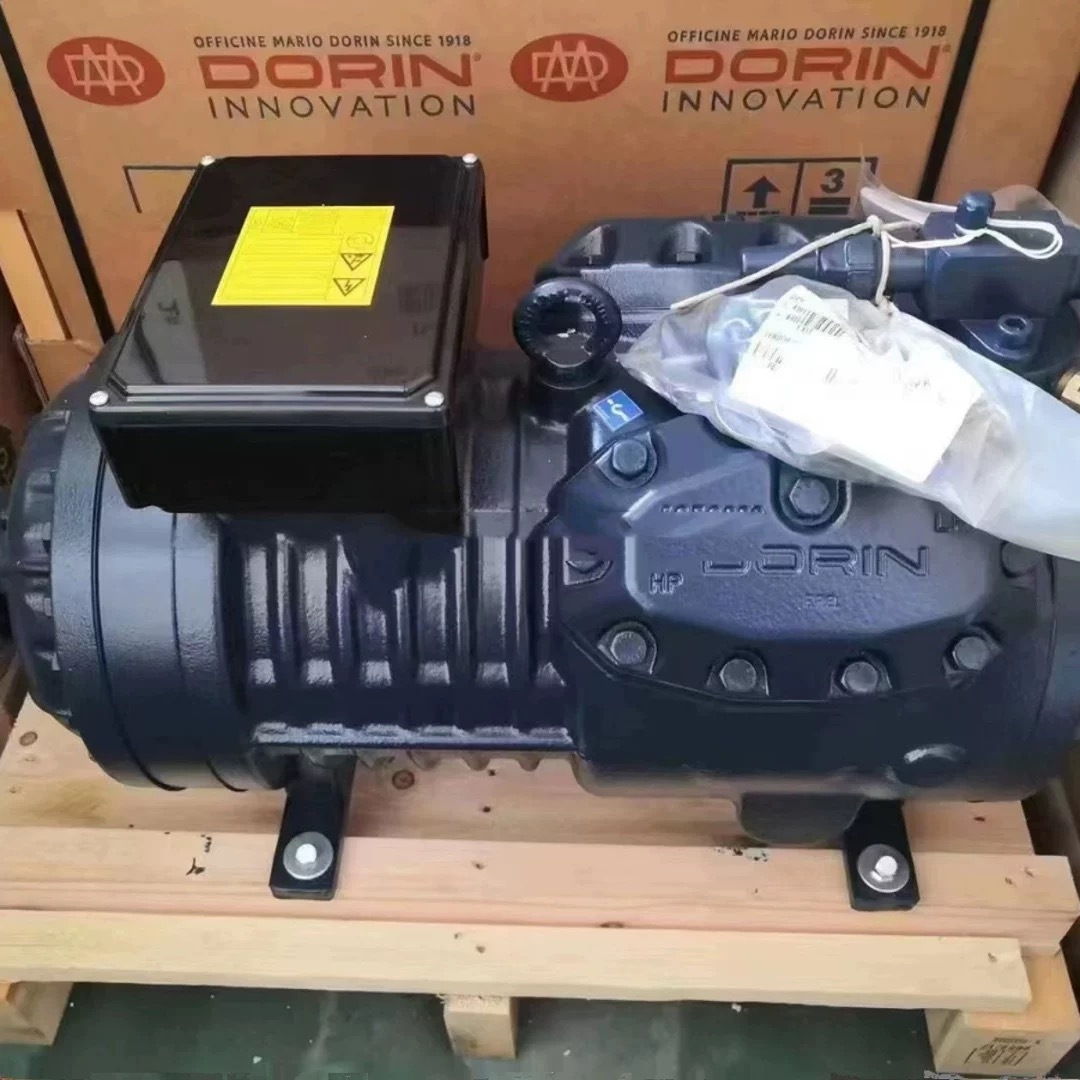

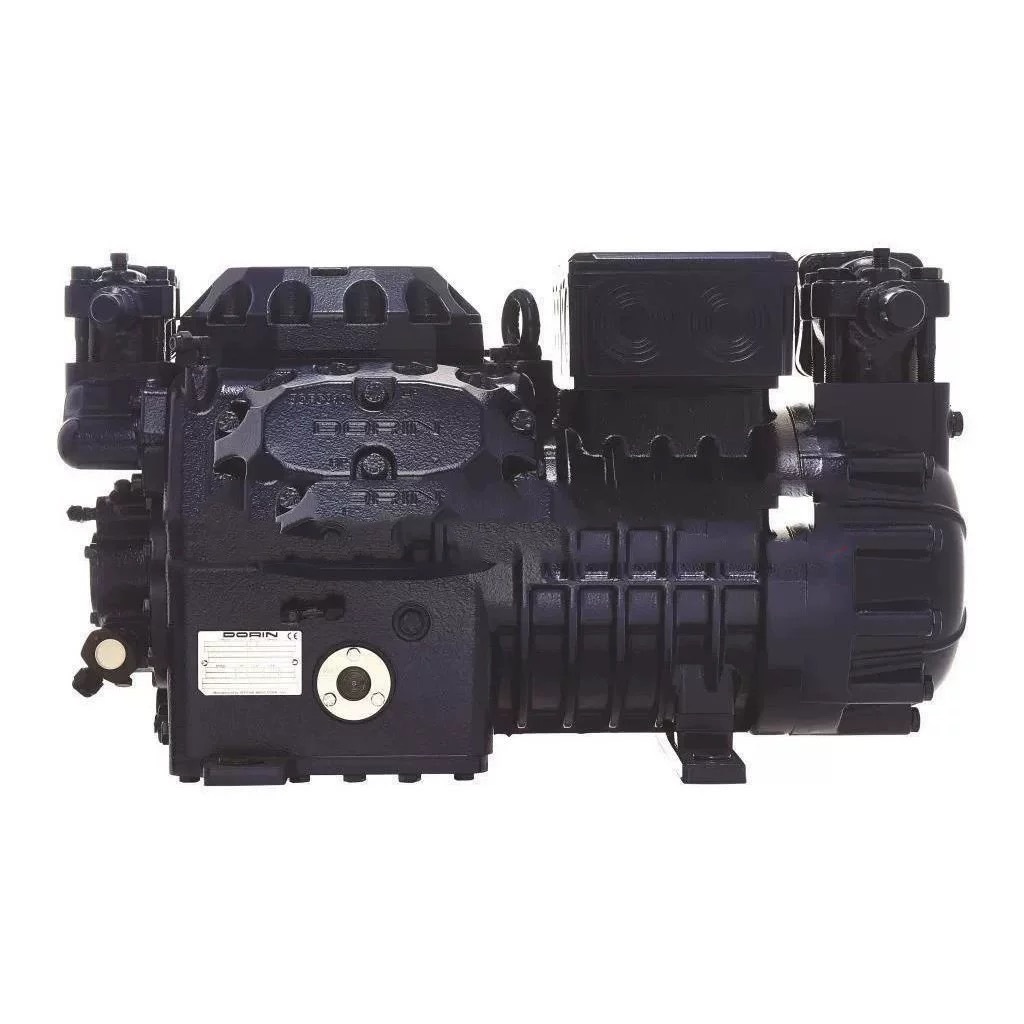

Technical Specifications – Dorin H80CS

Compressor Model: H80CS

Series: H Series

Compressor Type: Semi-Hermetic Reciprocating Compressor

Number of Cylinders: 2

Displacement

50 Hz: 5.37 m³/h

60 Hz: 6.44 m³/h

Oil Charge: 1.0 L

Suction Connection: 16 mm

Discharge Connection: 12 mm

Net Weight: 36 kg

Compatible Refrigerants

The Dorin H Series compressors support many modern refrigerants including:

R134a

R404A

R507A

R448A

R449A

R450A

R513A

R407C

R452A

R454C

These refrigerants allow the compressor to operate efficiently in commercial refrigeration and cold room systems.

Key Features

✔ Compact design with reduced footprint

✔ Low vibration and quiet operation

✔ High efficiency semi-hermetic piston compressor

✔ IP65 protected electrical junction box

✔ Optimized valve plate design for durability

✔ Compatible with inverter operation (30–70 Hz)

✔ Advanced oil management reducing oil carry-over

✔ Suitable for HFC and HFO refrigerants

Typical Applications

The Dorin H80CS compressor is commonly used in:

• Walk-in coolers

• Walk-in freezer systems

• Commercial refrigeration cabinets

• Supermarket refrigeration systems

• Cold storage rooms

• Refrigerated transport systems

• Ice cream storage equipment

Advantages

The Dorin H Series compressors provide:

• High reliability and long service life

• Stable operation and low vibration

• Energy efficient refrigeration performance

• Compatibility with multiple refrigerants

• Flexible operation with inverter control

These benefits help improve system efficiency and reduce operating costs.

Shipping & Availability

This compressor can be shipped worldwide via:

Air freight

Sea freight

Express courier

Delivery available for New Zealand, Australia, USA, Middle East, and global markets.
