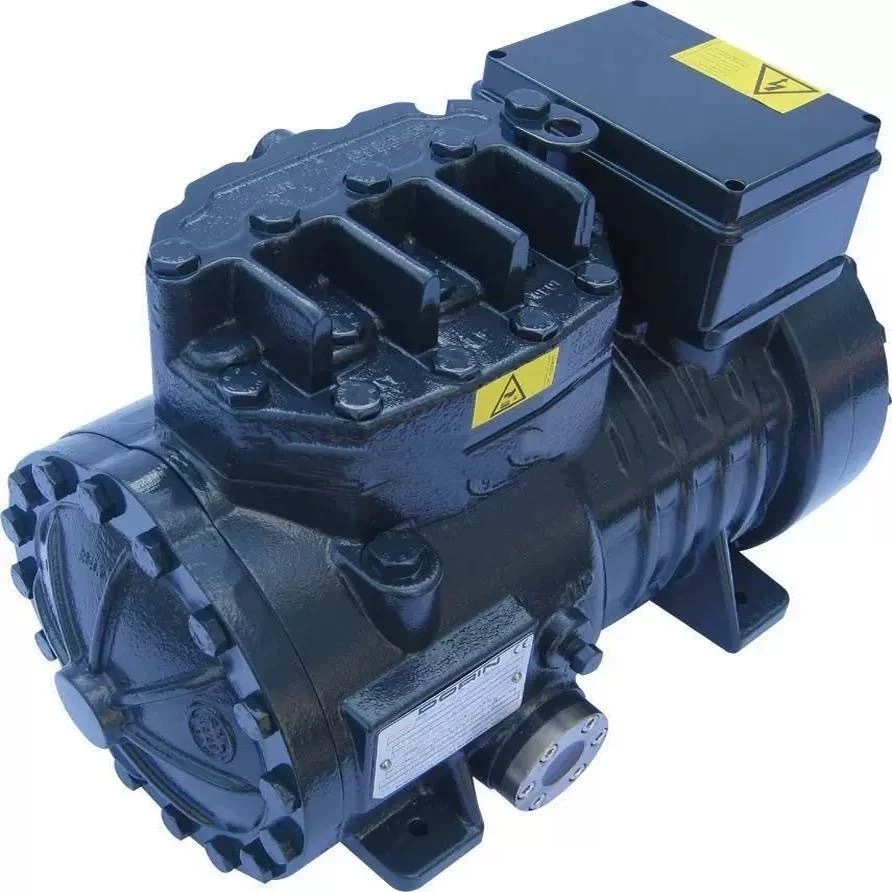

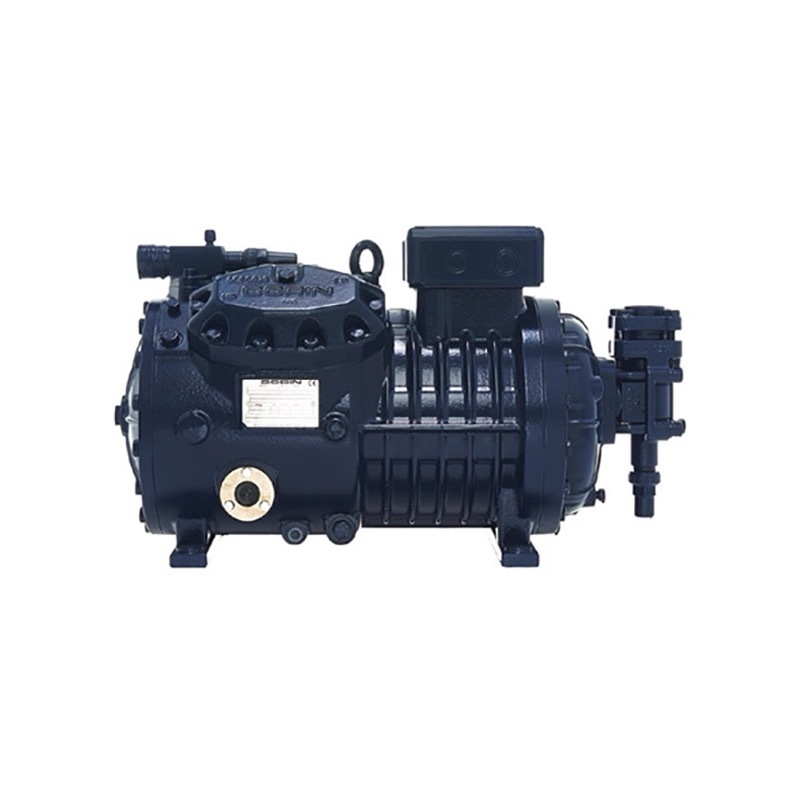

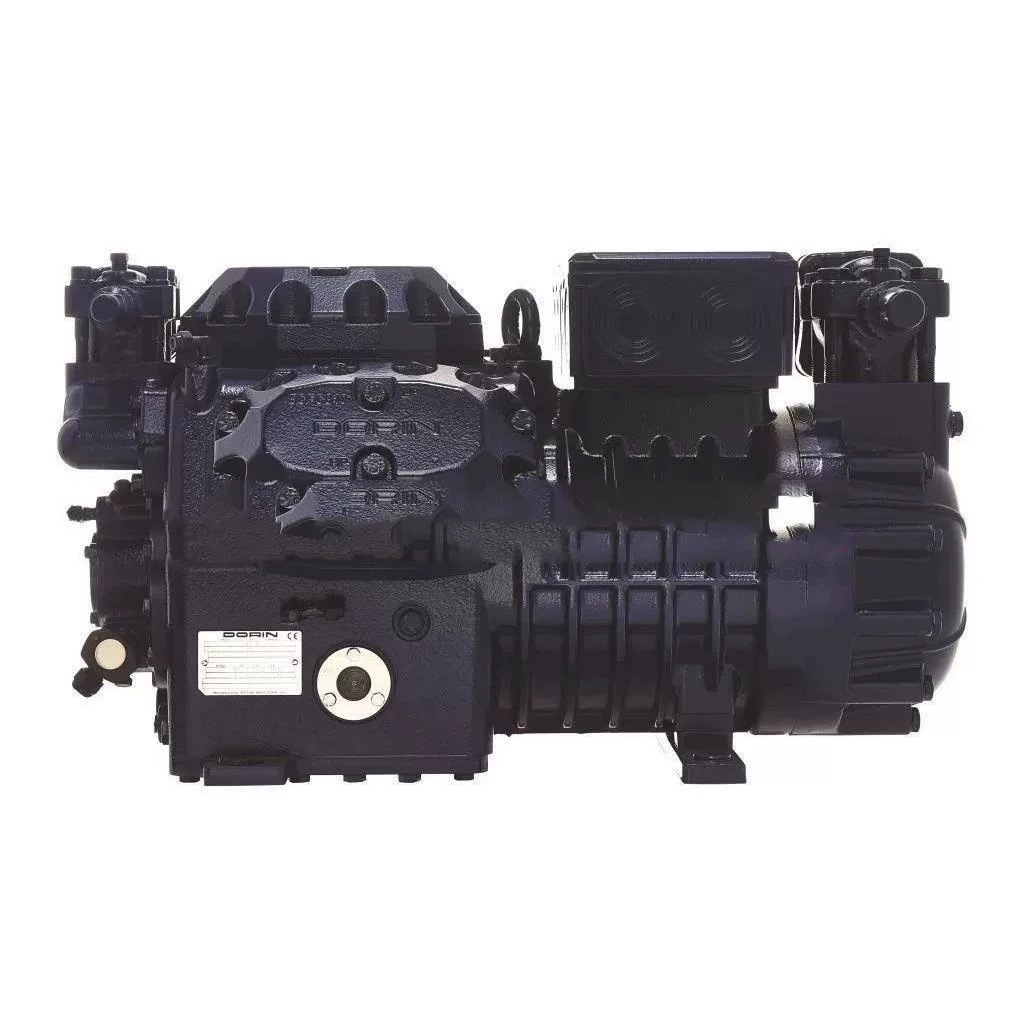

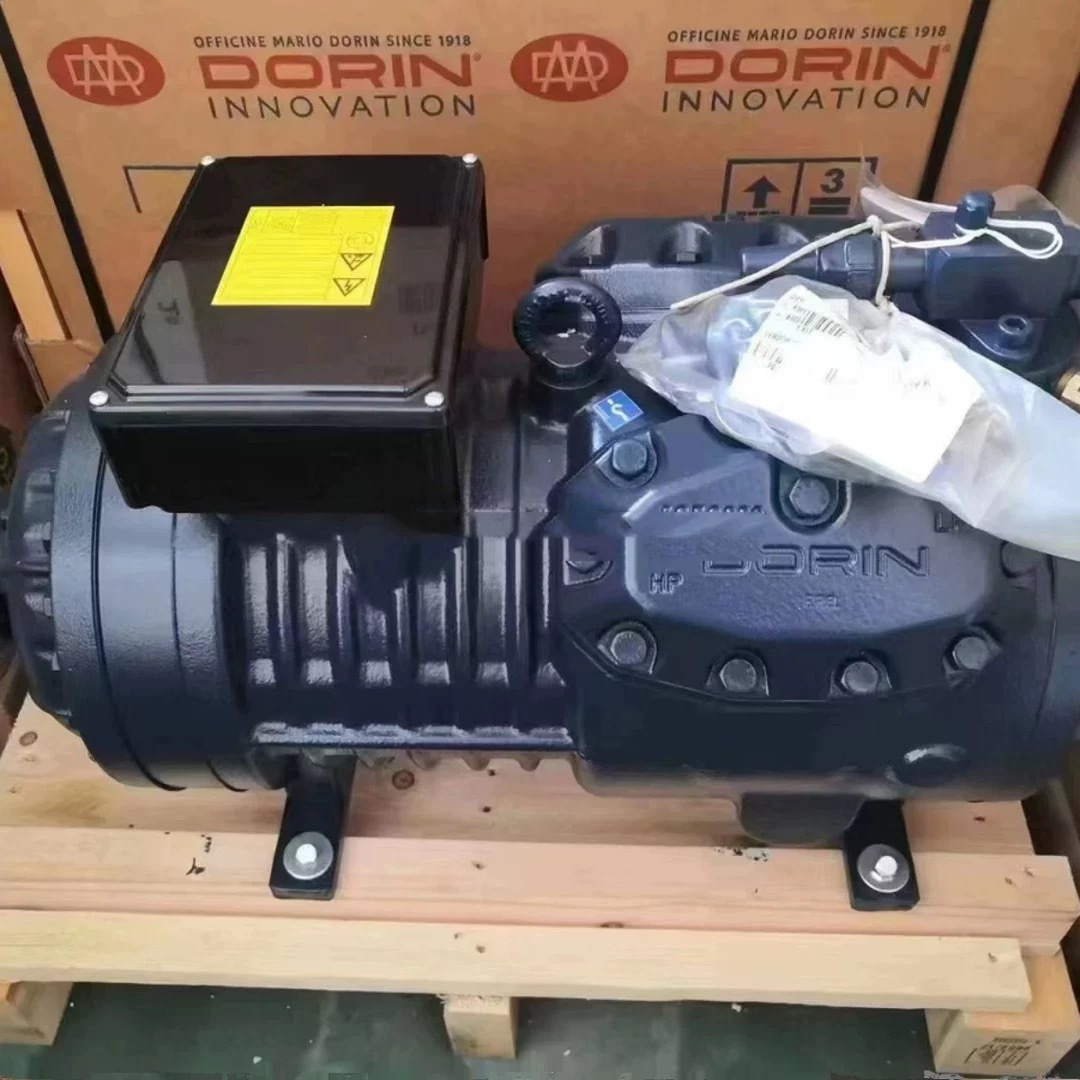

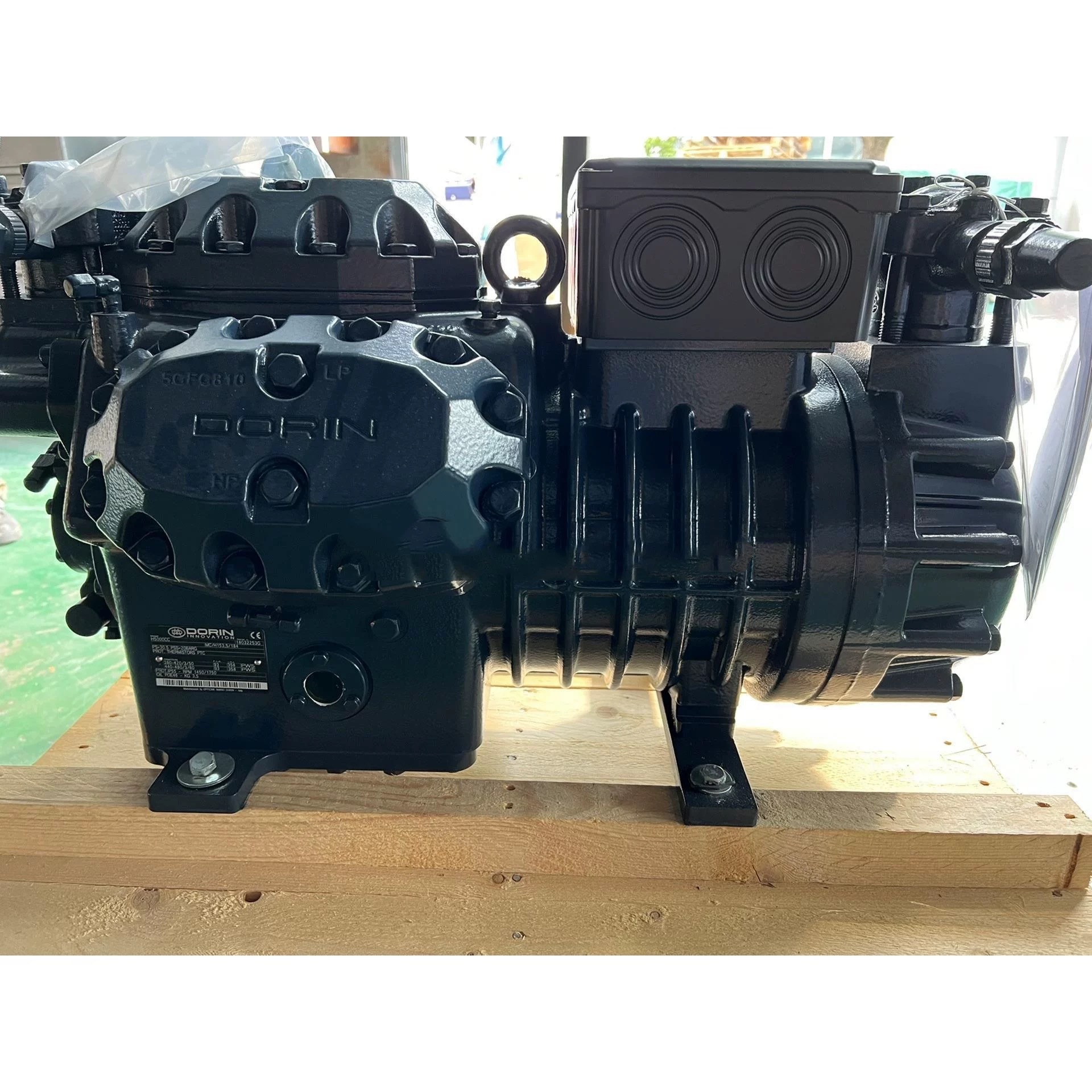

Technical Specifications – Dorin H80CS
Compressor Model: H80CS
Series: Dorin H Series
Compressor Type: Semi-Hermetic Reciprocating Compressor
Number of Cylinders: 2
Displacement (50 Hz): 5.37 m³/h
Displacement (60 Hz): 6.44 m³/h
Oil Charge: 1.0 L
Suction Connection: 16 mm
Discharge Connection: 12 mm
Net Weight: 36 kg
Compatible Refrigerants
The Dorin H Series compressors are compatible with many modern refrigerants including:
R134a
R404A
R507A
R448A
R449A
R450A
R513A
R407C
R452A
R454C
These refrigerants allow the compressor to operate efficiently in medium and low temperature refrigeration systems.
Key Features
✔ Compact and lightweight compressor design
✔ Low vibration and quiet operation
✔ High efficiency semi-hermetic piston compressor
✔ Optimized valve plate design for improved reliability
✔ IP65 electrical junction box protection
✔ Compatible with inverter operation (30–70 Hz)
✔ Advanced oil management system reducing oil carry-over
✔ Suitable for modern HFC and HFO refrigerants
Typical Applications
The Dorin H80CS compressor is commonly used in:
• Walk-in cold rooms
• Commercial refrigeration systems
• Food storage refrigeration
• Display refrigeration cabinets
• Refrigerated transport units
• Ice cream equipment
• Freezer storage rooms
Advantages of Dorin H Series Compressors
The Dorin H Series compressors provide several advantages for refrigeration systems:
• Reliable and durable semi-hermetic design
• High system efficiency
• Reduced energy consumption
• Low noise and vibration levels
• Wide refrigerant compatibility
• Suitable for variable speed operation using inverter technology
These features improve refrigeration system performance and reduce operational costs.
Shipping & Availability
This compressor can be shipped worldwide via:
Air freight
Sea freight
Express courier
Delivery options available for New Zealand, Australia, USA, Middle East, and international markets.
Why Choose This Compressor
The Dorin H80CS is a reliable solution for medium and low temperature refrigeration systems. Its efficient design, compact size, and compatibility with modern refrigerants make it ideal for cold rooms and commercial refrigeration equipment.
