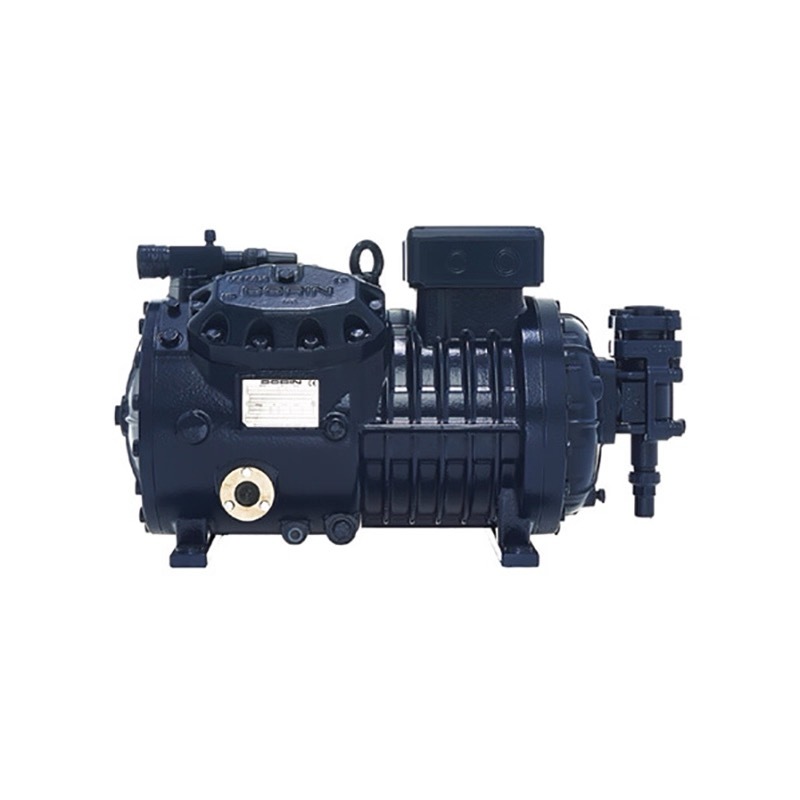

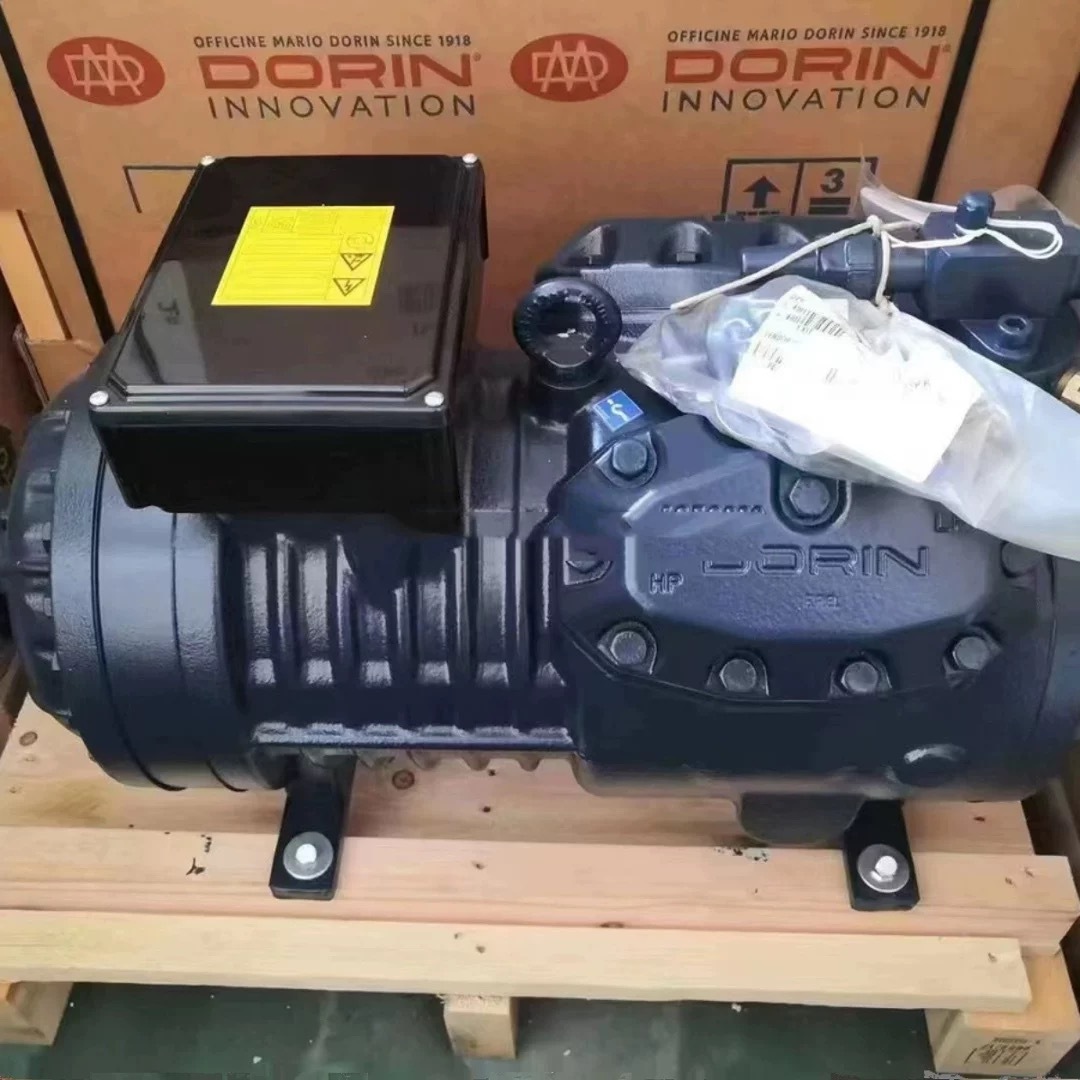

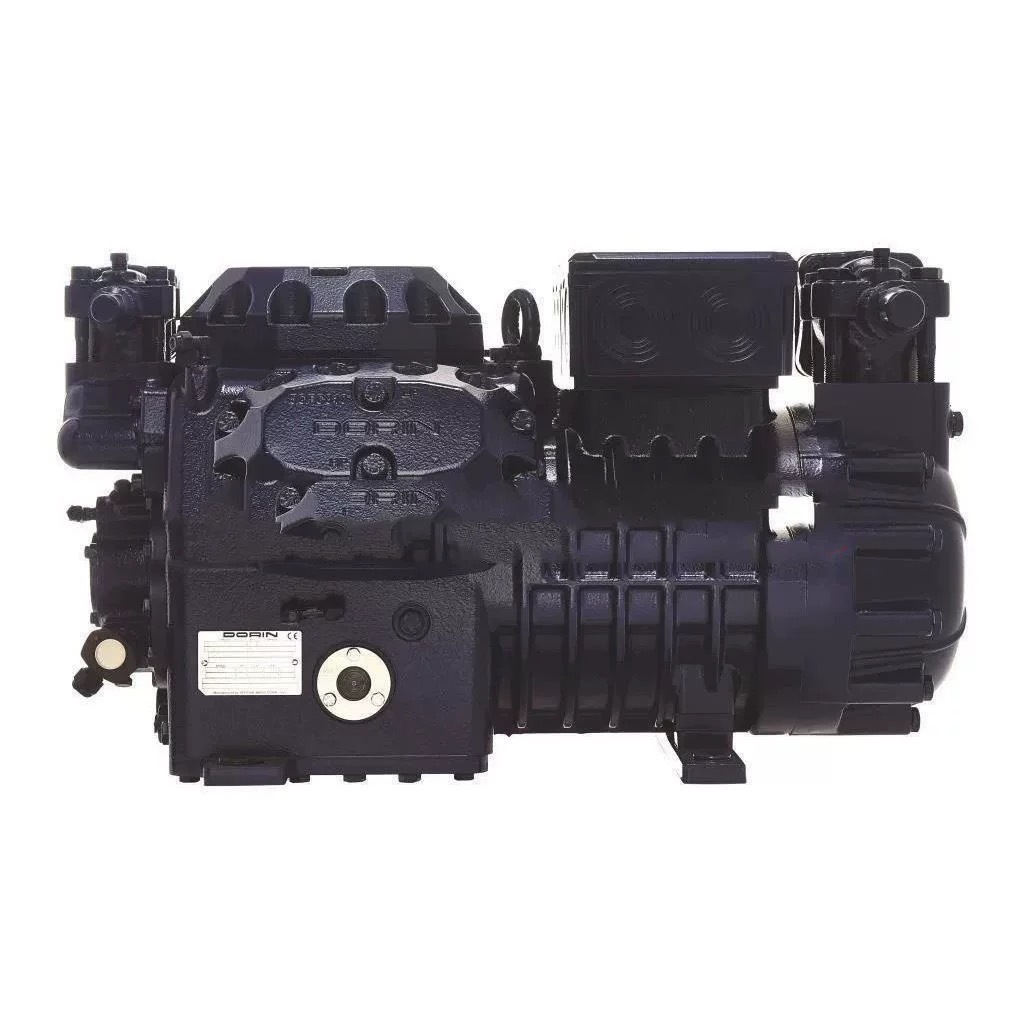

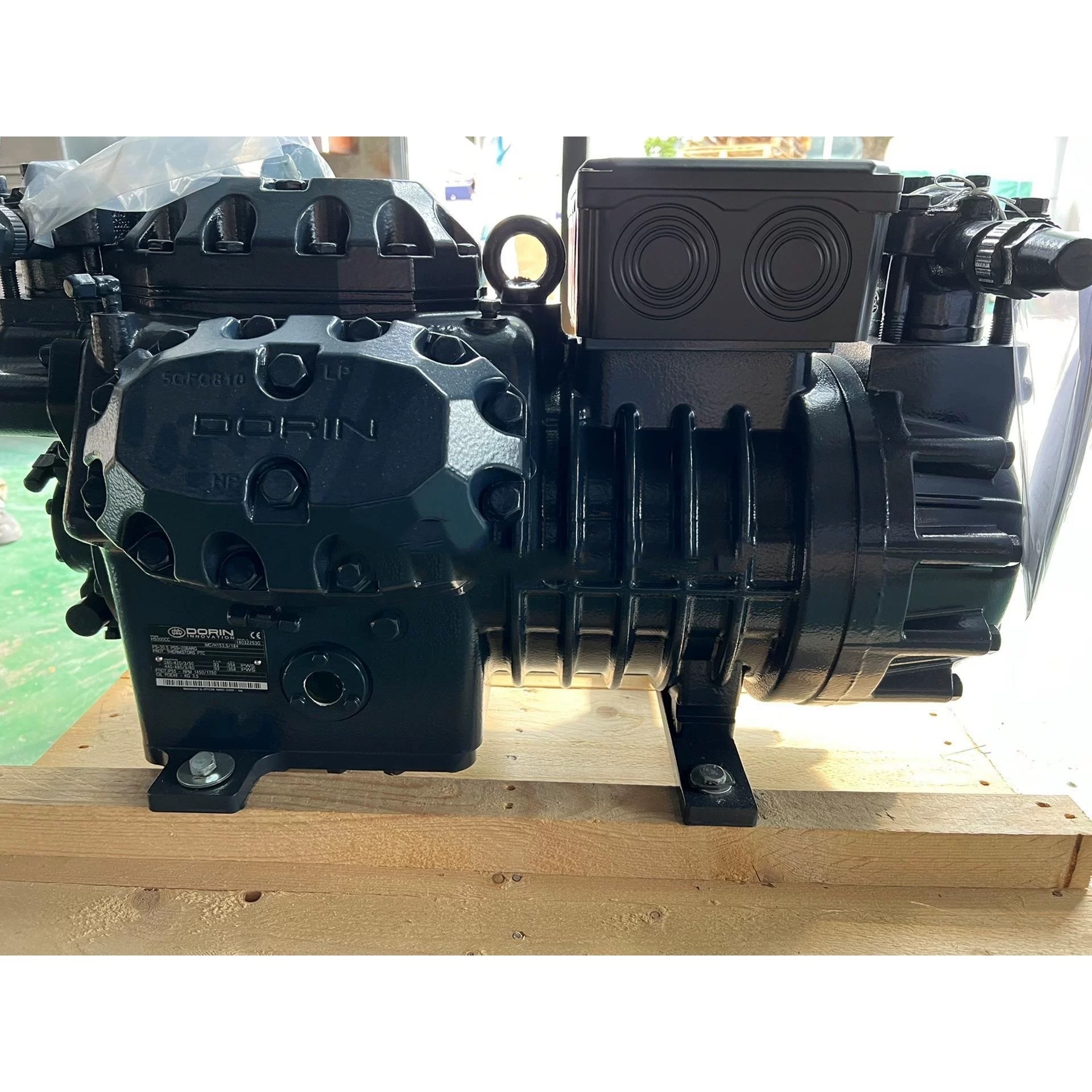

Technical Specifications – Dorin H701CS

Compressor Model: H701CS

Series: Dorin H Series

Compressor Type: Semi-Hermetic Reciprocating Compressor

Number of Cylinders: 6

Displacement

50 Hz: 34.56 m³/h

60 Hz: 41.47 m³/h

Oil Charge: 3.0 L

Suction Connection: 35 mm

Discharge Connection: 22 mm

Net Weight: ≈ 142 kg

Voltage:

380–400V / 3 Phase / 50Hz

Compatible Refrigerants

The Dorin H Series compressors support several refrigerants including:

R134a

R404A

R507A

R407C

R448A

R449A

These refrigerants allow the compressor to operate efficiently in commercial refrigeration and cold storage systems.

Key Features

✔ Semi-hermetic piston compressor design

✔ 6-cylinder configuration for high refrigeration capacity

✔ Low vibration and quiet operation

✔ High refrigeration efficiency

✔ Durable valve plate construction

✔ Easy installation and maintenance

✔ Compatible with modern HFC refrigerants

Typical Applications

The Dorin H701CS compressor is commonly used in:

• Walk-in coolers

• Walk-in freezer rooms

• Cold storage warehouses

• Supermarket refrigeration systems

• Food processing refrigeration

• Commercial refrigeration equipment

• Industrial refrigeration systems

Advantages

The Dorin H Series compressors provide several advantages:

• Reliable semi-hermetic compressor construction

• High energy efficiency

• Long operating life

• Reduced vibration and noise

• Wide refrigerant compatibility

• Stable cooling performance

These features make the compressor a dependable solution for cold room and refrigeration applications.

Shipping & Availability

This compressor can be shipped worldwide via:

Air freight

Sea freight

Express courier
