⚙️ Main Specifications

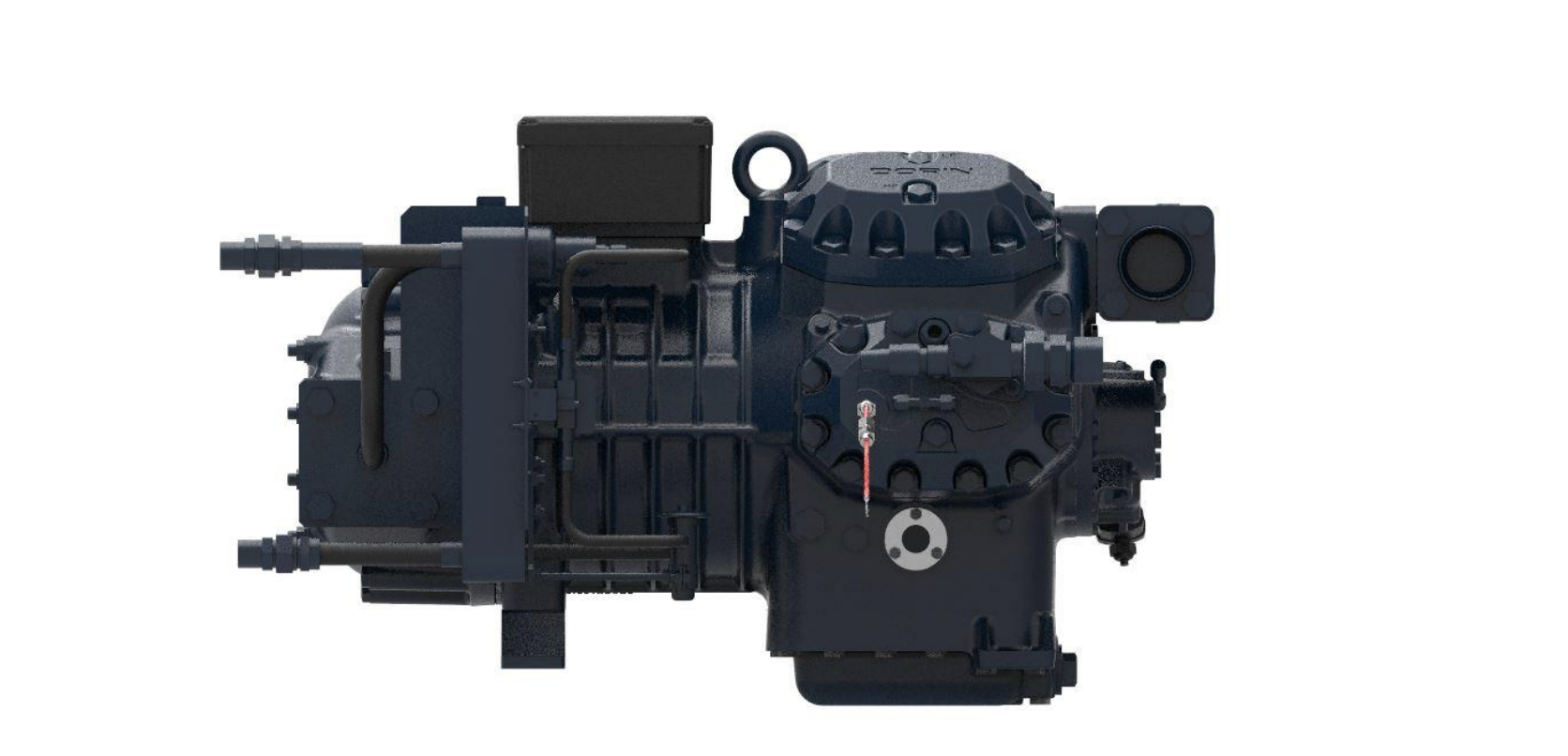

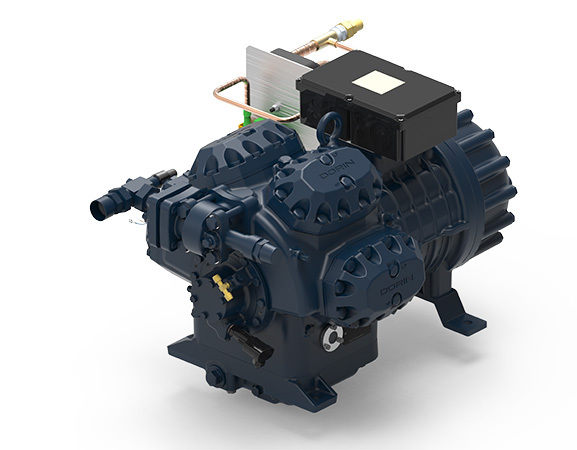

- 🔹 Model: 2S-H6500
- 🔹 Series: 2S-H7
- 🔹 Type: Two-Stage Semi-Hermetic Reciprocating Compressor
- 🔹 LP Displacement @ 50 Hz: 183.58 m³/h
- 🔹 HP Displacement @ 50 Hz: 61.19 m³/h
- 🔹 LP Displacement @ 60 Hz: 220.30 m³/h
- 🔹 HP Displacement @ 60 Hz: 73.43 m³/h
- 🔹 LP Cylinders: 6
- 🔹 HP Cylinders: 2
- 🔹 LP / HP Volume Ratio: 3.00
- 🔹 Oil Charge: 8.5 L
- 🔹 Suction Valve: 66 mm
- 🔹 Discharge Valve: 42 mm
- 🔹 Net Weight: 365 kg
- 🔹 Maximum Absorbed Power @ 50 Hz: 60.2 kW
- 🔹 Maximum Absorbed Power @ 60 Hz: 72.2 kW
These specifications match Dorin’s current technical data for the 2S-H6500. Dorin
🏭 Typical Applications
The 2S-H6500 is suitable for blast freezers, industrial freezer rooms, frozen-food storage, seafood and meat processing, food production plants, large cold-storage facilities, logistics centres, marine refrigeration and other industrial low-temperature refrigeration systems. Dorin states that the 2S-H7 range can operate down to very low temperatures and positions it as an alternative to screw compressors in many low-temperature applications.
🚚 Shipping & Availability
✅ Standard 50 Hz configurations available
⚙️ 60 Hz and special-voltage configurations available on request
📦 Export-grade packaging for international shipping
🌍 Worldwide air and sea freight options available
📥 Technical Support
Contact us for compressor selection, refrigeration capacity, operating conditions, refrigerant selection, voltage requirements and international shipping.
