⚙️ Main Specifications

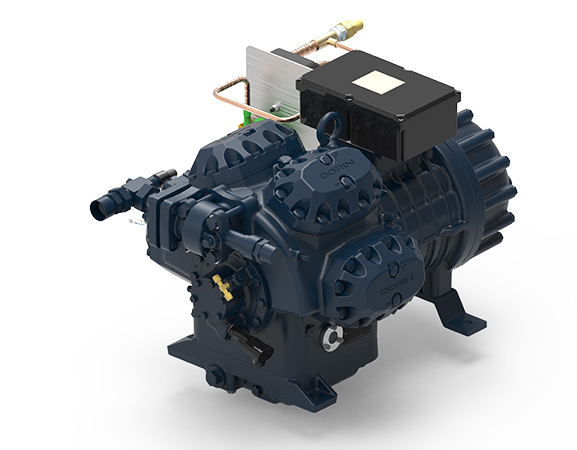

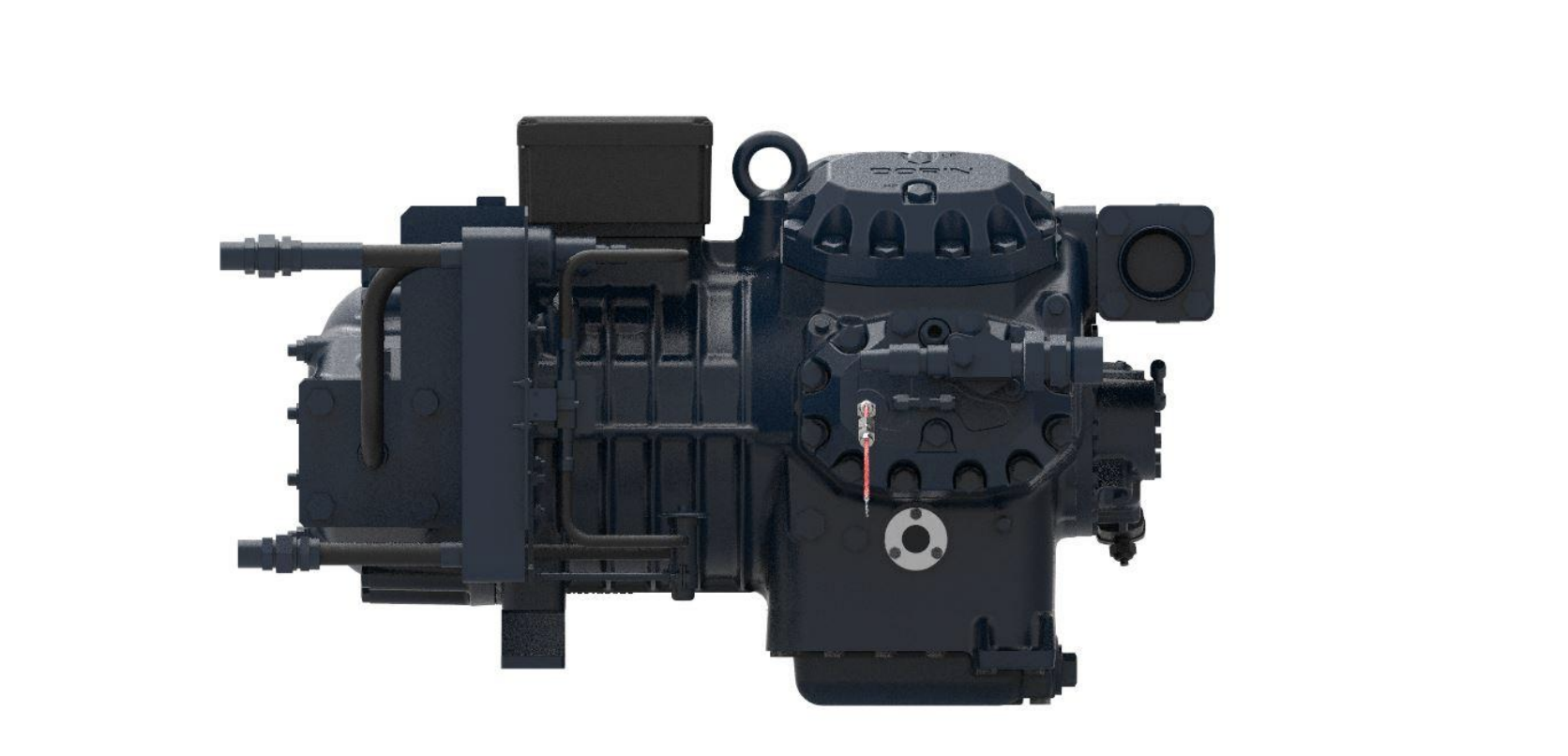

- 🔹 Model: 2S-H6000
- 🔹 Series: 2S-H7
- 🔹 Type: Two-Stage Semi-Hermetic Reciprocating Compressor
- 🔹 LP Displacement @ 50 Hz: 166.31 m³/h
- 🔹 HP Displacement @ 50 Hz: 61.19 m³/h
- 🔹 LP Displacement @ 60 Hz: 199.58 m³/h
- 🔹 HP Displacement @ 60 Hz: 73.43 m³/h
- 🔹 LP Cylinders: 6
- 🔹 HP Cylinders: 2
- 🔹 Oil Charge: 8.5 L
- 🔹 Net Weight: 367 kg
- 🔹 LP / HP Volume Ratio: 2.72
- 🔹 Maximum Absorbed Power @ 50 Hz: 60.2 kW
- 🔹 Maximum Absorbed Power @ 60 Hz: 72.2 kW
These specifications are listed by Dorin for the 2S-H6000. Dorin
❄️ Typical Applications
Suitable for:
- Blast freezers
- Industrial freezer rooms
- Frozen-food cold storage
- Seafood and meat processing
- Food production facilities
- Logistics and cold-storage centers
- Industrial refrigeration plants
- Marine refrigeration
Dorin lists industrial refrigeration, logistics, marine and retail among the applications for its 2S-H range.
🚚 Shipping & Availability
✅ Standard 380–420V / 50Hz configurations available
⚙️ 60Hz and special-voltage configurations available on request
📦 Export-grade packaging for international shipping
🌍 Worldwide air and sea freight options available
📥 Technical Support
Contact us for compressor selection, refrigeration capacity, operating conditions, voltage requirements and international shipping.
