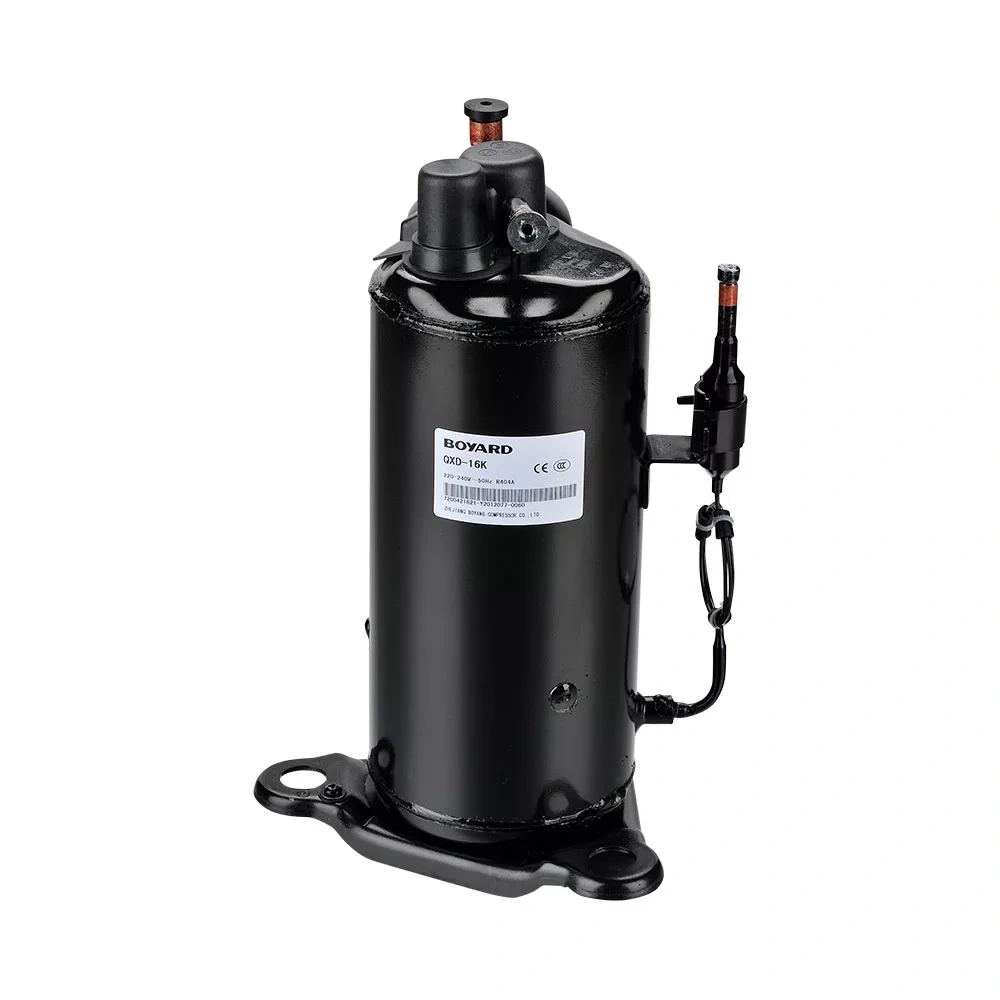

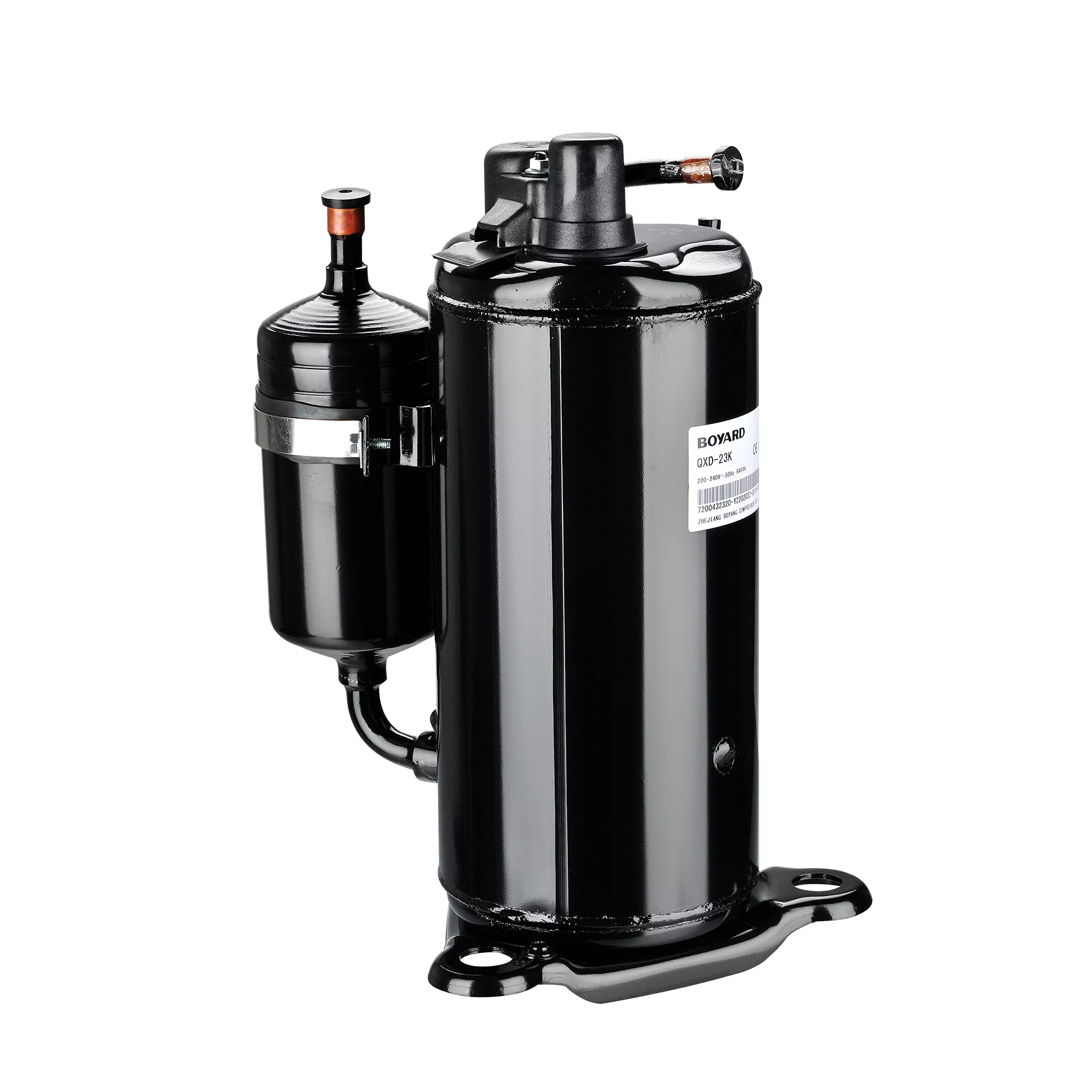

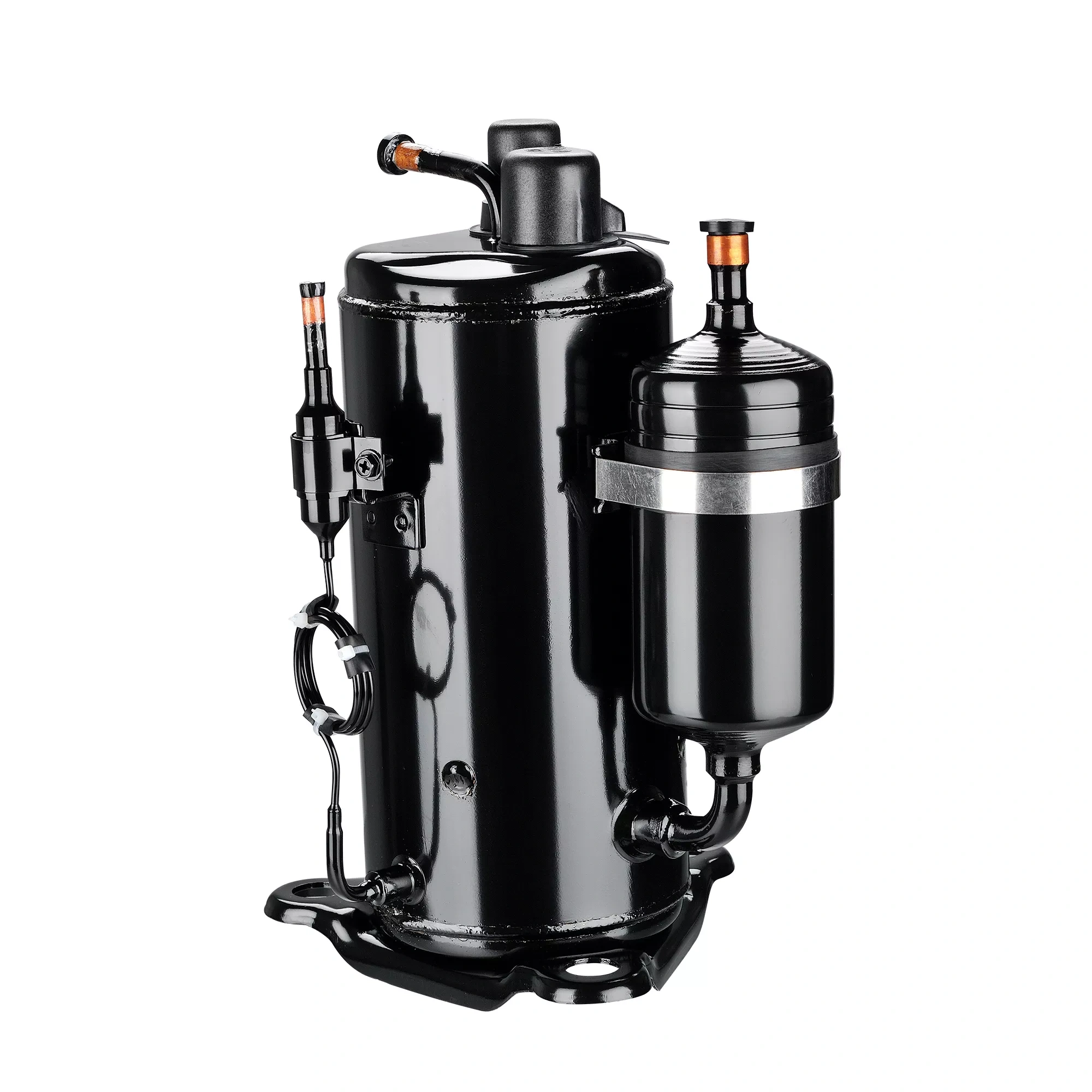

BOYARD QXD-30K Commercial Refrigeration Compressor

⚙️ Main Specifications

Model: QXD-30K
Brand: BOYARD
Compressor Type: Hermetic Rotary Refrigeration Compressor
Application: MBP / LBP Commercial Refrigeration
Power Supply: 1 Phase, 220–240V
Frequency: 50Hz standard / 60Hz options available
Displacement: 30.7 cc/rev
Rated Speed @ 50Hz: 2850 rpm
Configuration: Vertical
Number of Cylinders: 1
Height: 340 mm
Refrigerants: R404A / R448A / R449A / R455A / R454C / R452A

❄️ Medium Temperature – MBP

Cooling Capacity: 3,200 W / 10,918 Btu/h
Input Power: 1,883 W
Current: 8.7 A
COP: 1.70 W/W

These performance figures are based on the specified 50Hz test conditions.

🧊 Low Temperature – LBP

Cooling Capacity: 1,800 W / 6,142 Btu/h
Input Power: 1,714 W
Current: 8.0 A
COP: 1.05 W/W

The QXD-30K provides reliable performance for both medium- and low-temperature commercial refrigeration systems.

🔧 Key Features

• 30.7 cc/rev displacement
• Vertical rotary compressor design
• Suitable for MBP and LBP refrigeration
• Single-phase power supply
• 50Hz and 60Hz options available
• Compatible with multiple modern refrigerants
• Compact vertical configuration
• Suitable for commercial refrigeration equipment
• Suitable for cold-room condensing units
• Designed for demanding medium- and low-temperature applications

🏪 Applications

The BOYARD QXD-30K is suitable for:

• Walk-in freezers
• Walk-in chillers
• Cold-room refrigeration systems
• Commercial freezer cabinets
• Refrigerated display equipment
• Commercial condensing units
• Supermarket refrigeration
• Food and beverage refrigeration
• Medium- and low-temperature refrigeration equipment
