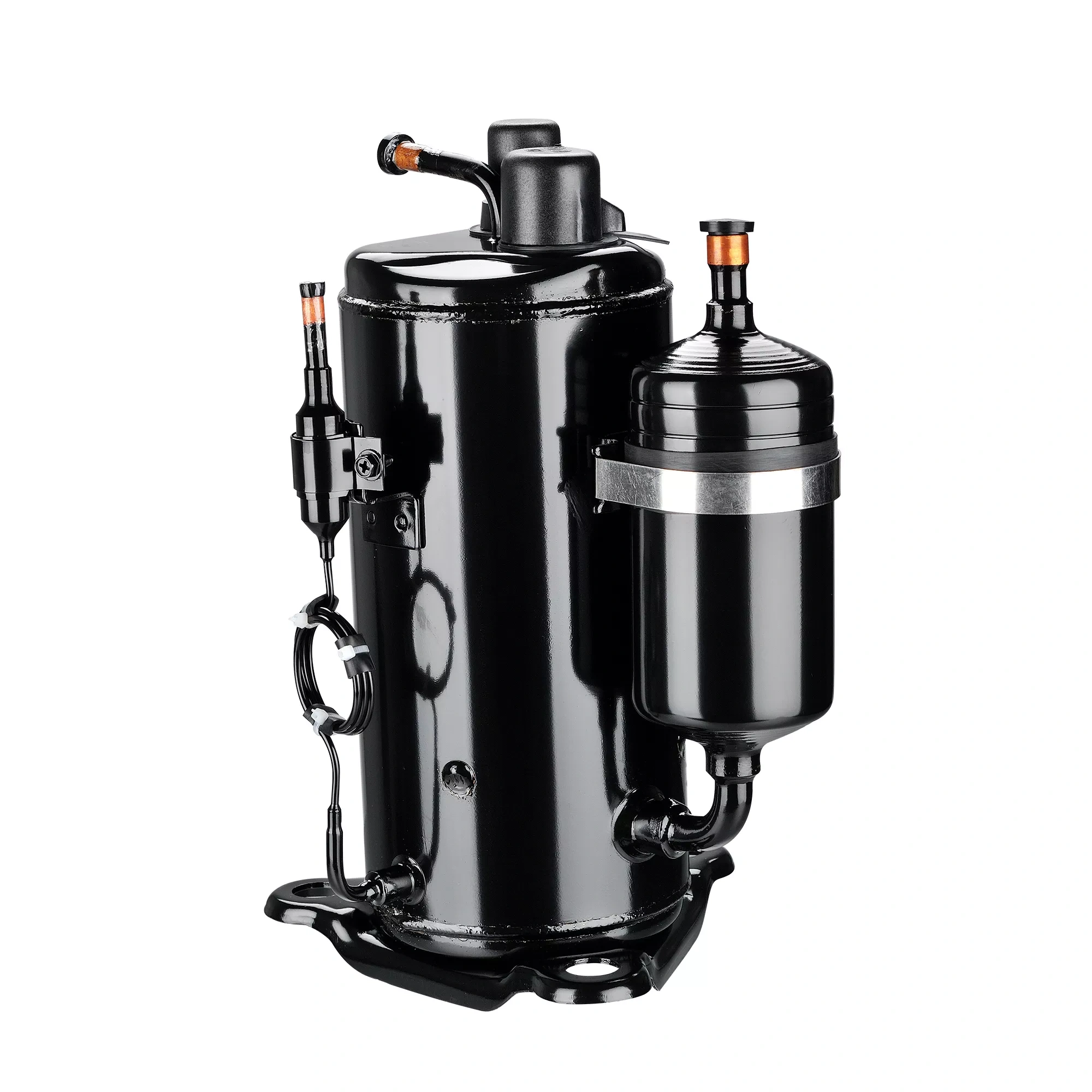

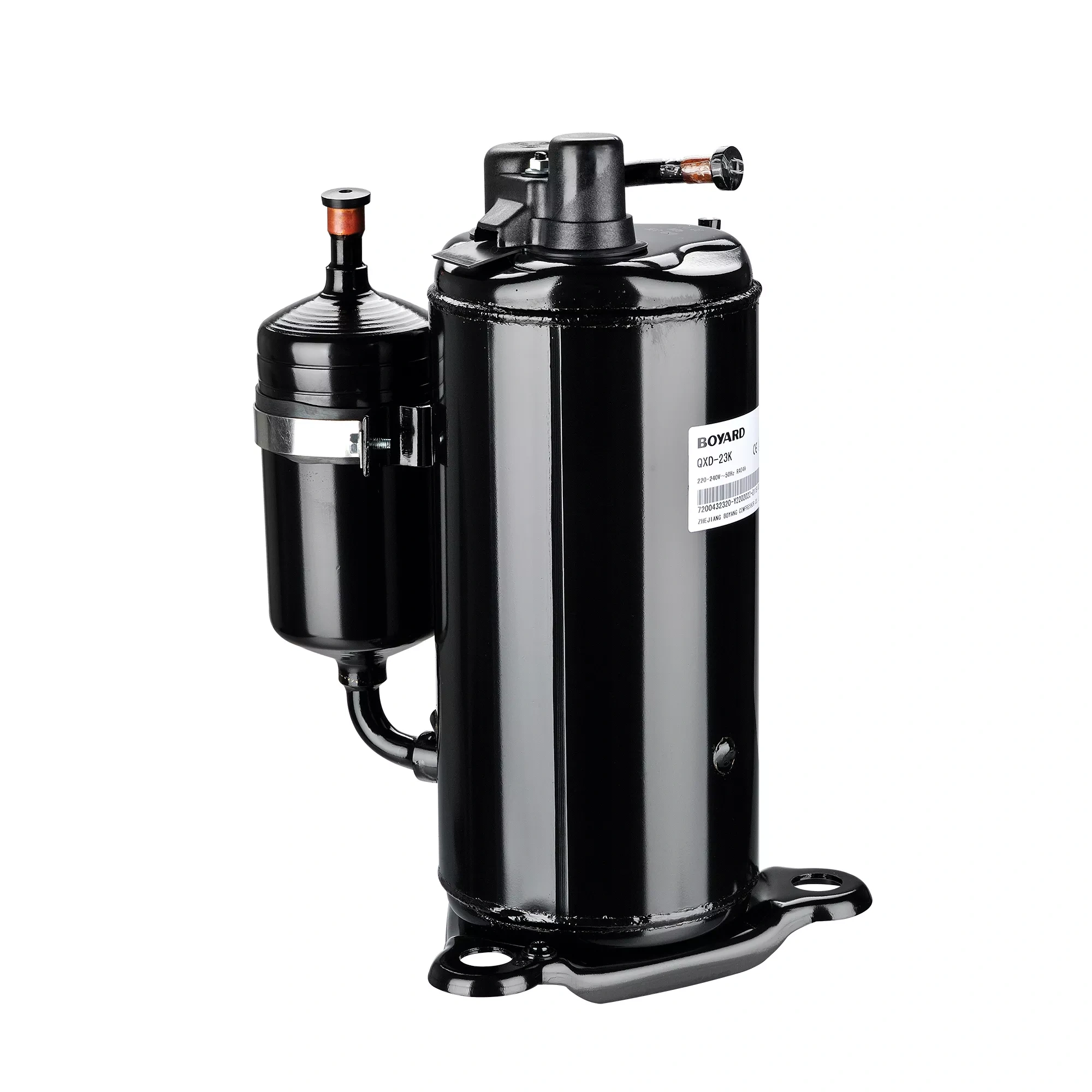

The BOYARD QXD-23K is a vertical rotary compressor designed for medium- and low-temperature commercial refrigeration applications. With a displacement of 23.6 cc/rev, it provides strong refrigeration capacity for commercial freezers, chillers, cold rooms and condensing units.
Model: QXD-23K
Brand: BOYARD
Compressor Type: Hermetic Rotary Refrigeration Compressor
Application: MBP / LBP Commercial Refrigeration
Power Supply: 1 Phase, 220–240V
Frequency: 50Hz standard / 60Hz options available
Displacement: 23.6 cc/rev
Rated Speed @ 50Hz: 2850 rpm
Configuration: Vertical
Number of Cylinders: 1
Height: 330 mm
Refrigerants: R404A / R448A / R449A / R455A / R454C / R452A
Cooling Capacity: 2,780 W / 9,485 Btu/h
Input Power: 1,545 W
Current: 7.3 A
COP: 1.80 W/W
These performance figures are based on the specified 50Hz test conditions.
Cooling Capacity: 1,450 W / 4,947 Btu/h
Input Power: 1,380 W
Current: 6.5 A
COP: 1.05 W/W
The QXD-23K provides flexible performance for both medium- and low-temperature commercial refrigeration applications.
The BOYARD QXD-23K can be used for:
