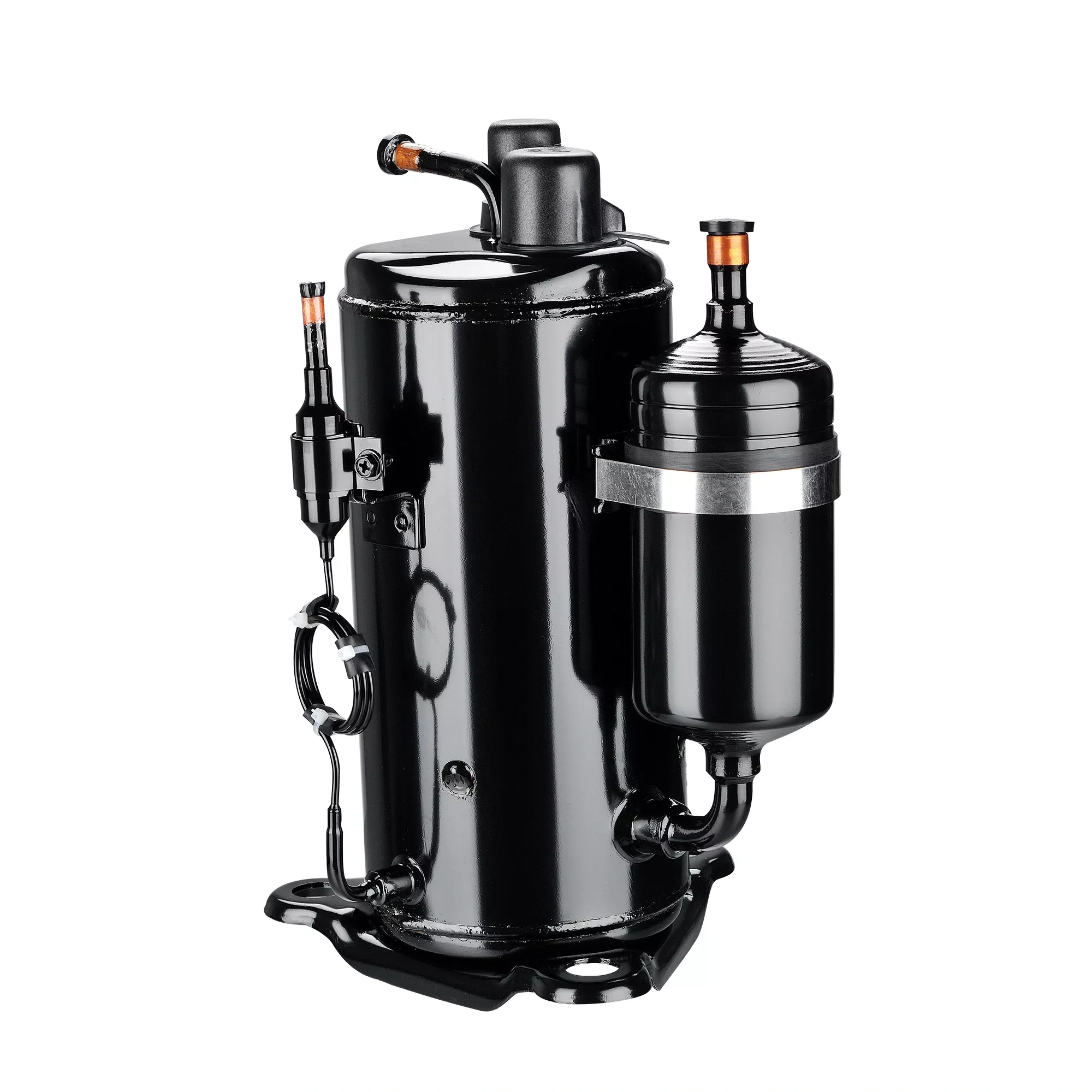

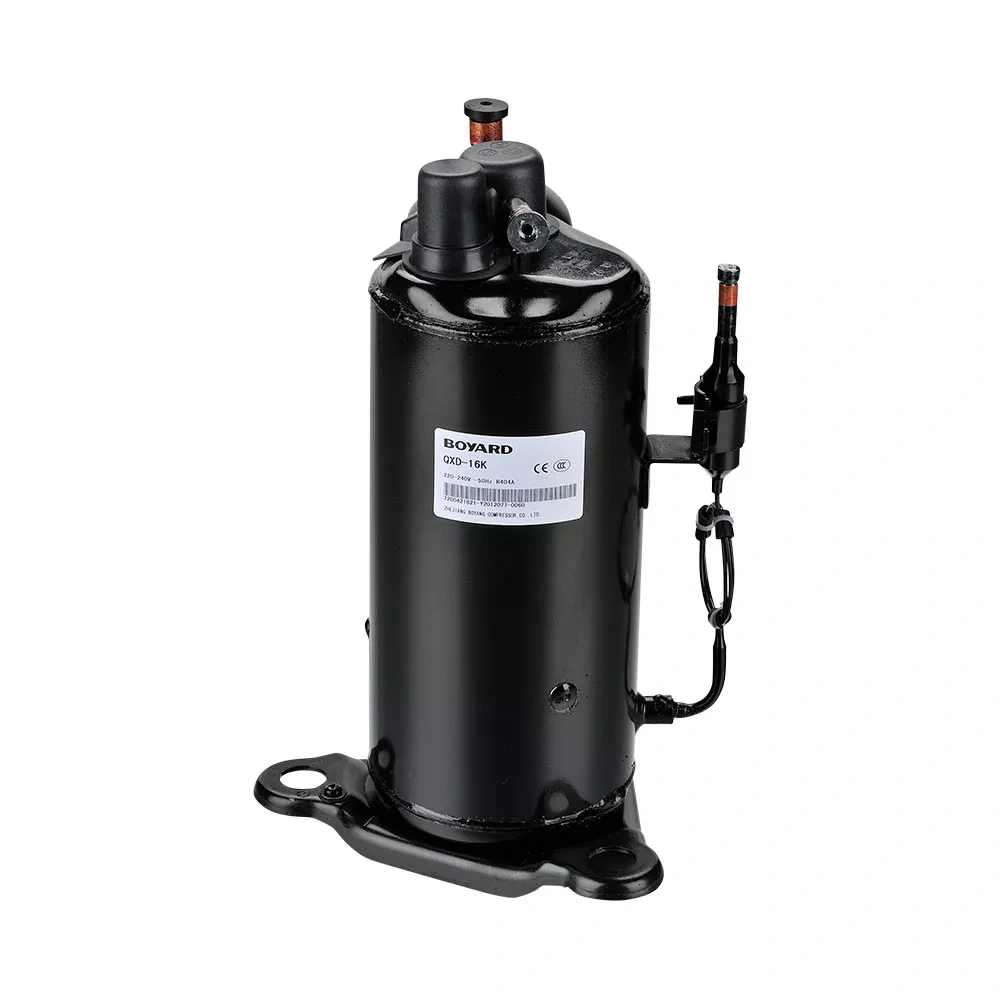

The BOYARD QXD-16K is a compact vertical rotary compressor designed for medium- and low-temperature commercial refrigeration applications. It features a 16.4 cc/rev displacement and operates on single-phase 220–240V, 50Hz power.
Model: QXD-16K
Brand: BOYARD
Compressor Type: Hermetic Rotary Refrigeration Compressor
Application: MBP / LBP
Power Supply: 1 Phase, 220–240V, 50Hz
Displacement: 16.4 cc/rev
Rated Speed: 2850 rpm
Configuration: Vertical
Number of Cylinders: 1
Height: 310 mm
Evaporating Temperature Range: -40°C to -5°C
Refrigerants: R404A / R448A / R449A / compatible A2L refrigerants Boyard Compressors
Cooling Capacity: 2,070 W / 7,063 Btu/h
Input Power: 1,035 W
Current: 4.9 A
COP: 2.00 W/W
The MBP performance is rated at an evaporating temperature of -6.7°C and condensing temperature of 54.5°C. Boyard Compressors
Cooling Capacity: 1,000 W / 3,412 Btu/h
Input Power: 950 W
Current: 4.5 A
COP: 1.05 W/W
The LBP performance is rated at an evaporating temperature of -23.3°C and condensing temperature of 54.5°C. Boyard Compressors
The BOYARD QXD-16K combines a compact vertical design with medium- and low-temperature refrigeration capability. It uses liquid-injection cooling technology to help maintain stable compressor operation under demanding conditions. Boyard Compressors
Key features include:
The QXD-16K can be used in commercial refrigeration applications such as refrigerated display cabinets, commercial freezers, chillers, cold-room refrigeration systems and condensing units. BOYARD also uses the QXD-16K in its 1 HP commercial outdoor condensing unit range. Boyard Compressors
