⚙️ Main Specifications

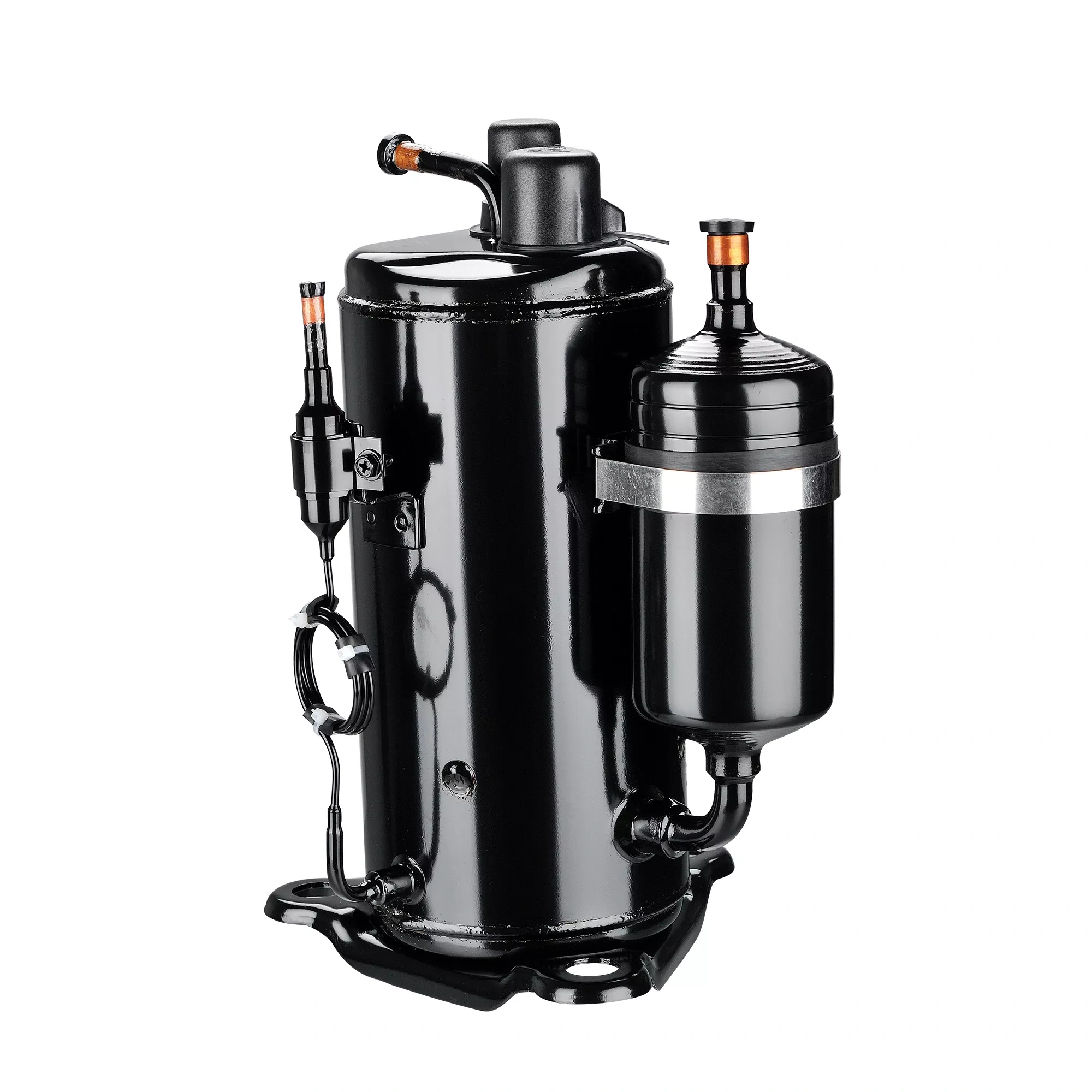

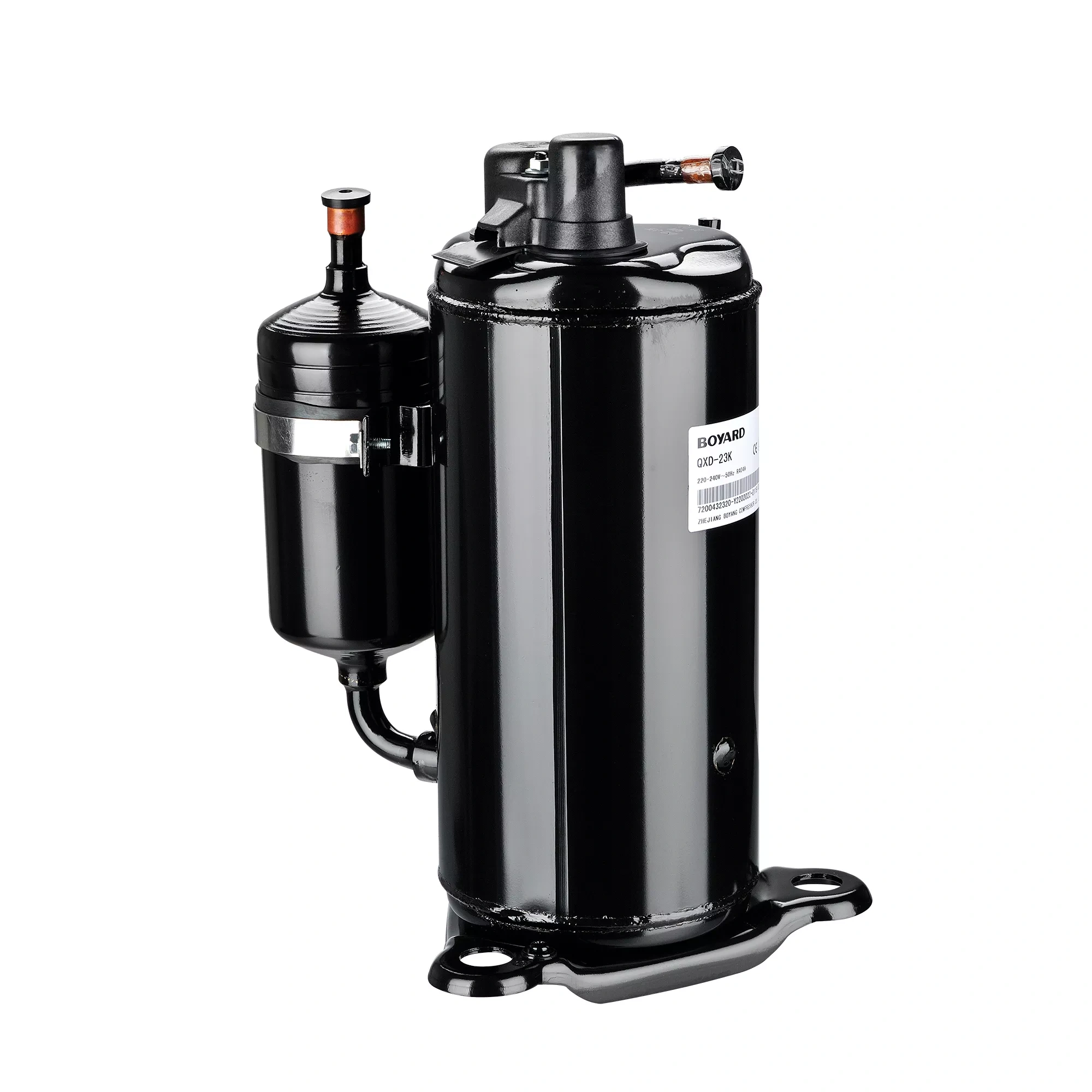

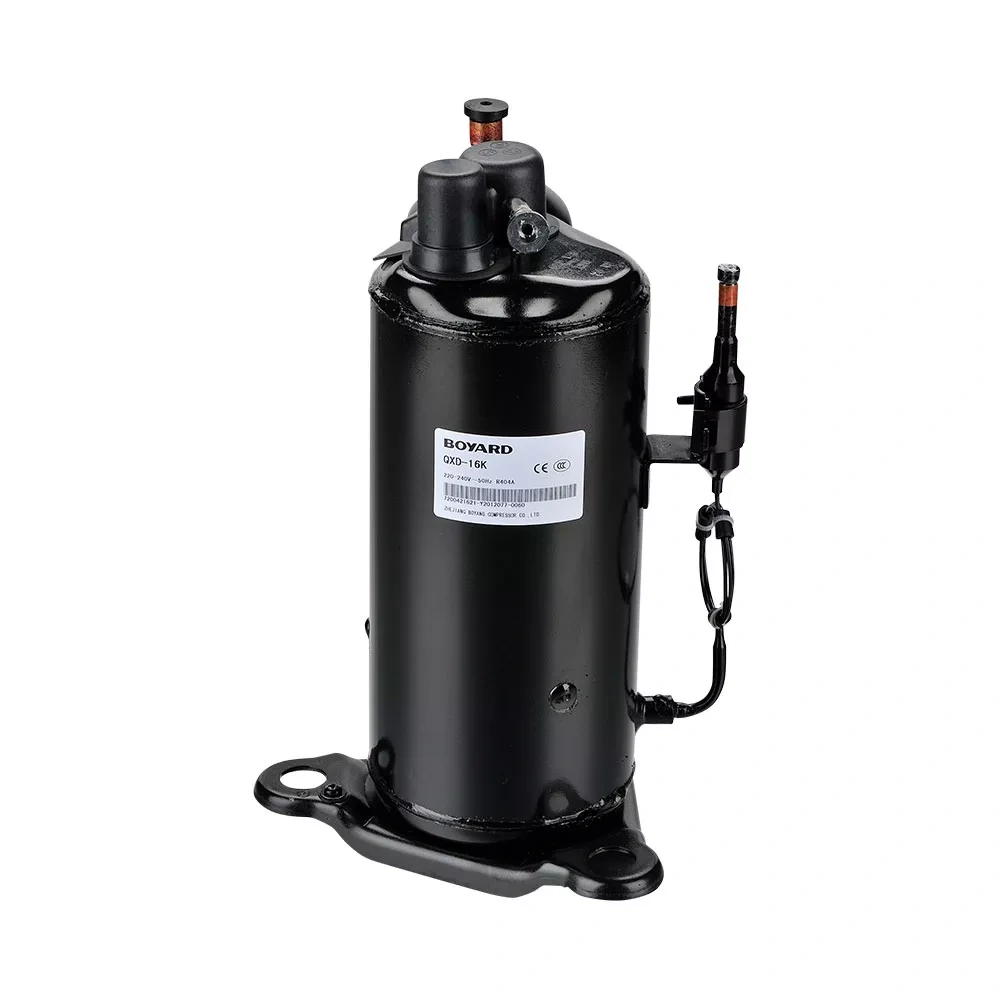

Model: QHD-36K
Brand: BOYARD
Compressor Type: Hermetic Rotary Refrigeration Compressor
Application: MBP / LBP Commercial Refrigeration
Power Supply: 1 Phase, 220–240V
Frequency: 50Hz standard / 60Hz options available
Displacement: 35.7 cc/rev
Rated Speed @ 50Hz: 2850 rpm
Configuration: Horizontal
Number of Cylinders: 1
Height: 195 mm
Refrigerants: R404A / R448A / R449A / R455A / R454C / R452A
❄️ Medium Temperature – MBP
Cooling Capacity: 3,720 W / 12,693 Btu/h
Input Power: 2,190 W
Current: 10.3 A
COP: 1.70 W/W
These performance figures are based on the specified 50Hz test conditions.
🧊 Low Temperature – LBP
Cooling Capacity: 2,085 W / 7,114 Btu/h
Input Power: 1,986 W
Current: 9.3 A
COP: 1.05 W/W
The QHD-36K is suitable for both medium- and low-temperature refrigeration applications, particularly where a compact horizontal compressor is required.
🔧 Key Features
- 35.7 cc/rev displacement
- Compact horizontal rotary design
- Only 195 mm in height
- Suitable for MBP and LBP refrigeration
- Single-phase power supply
- 50Hz and 60Hz options available
- Compatible with multiple refrigerants
- Space-saving installation
- Suitable for commercial refrigeration equipment
- Suitable for cold-room and freezer condensing units
🏪 Applications
The BOYARD QHD-36K is suitable for:
- Walk-in freezers
- Walk-in chillers
- Cold-room refrigeration systems
- Commercial freezer cabinets
- Refrigerated display equipment
- Commercial condensing units
- Supermarket refrigeration
- Food and beverage refrigeration
- Medium- and low-temperature refrigeration systems
