⚙️ Main Specifications

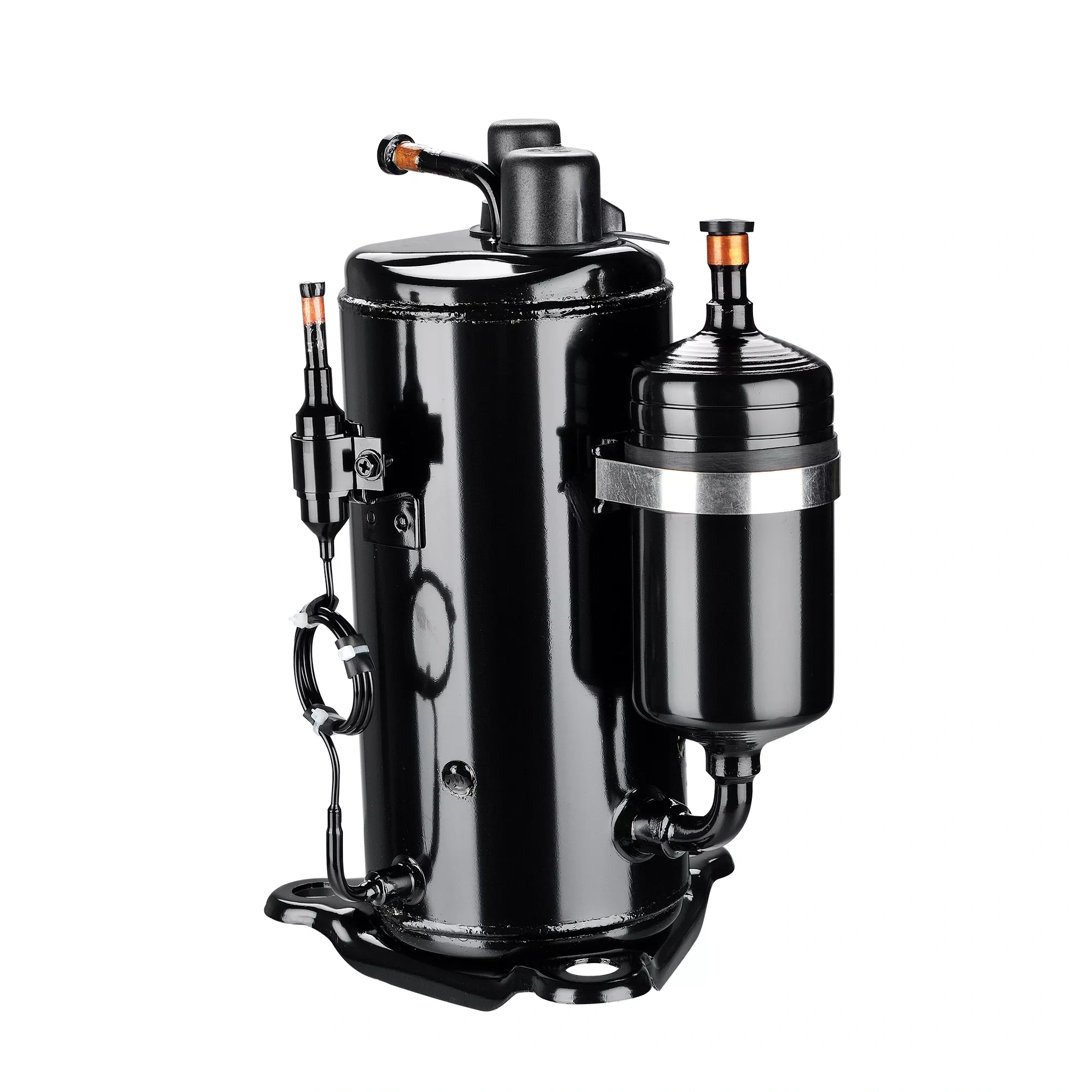

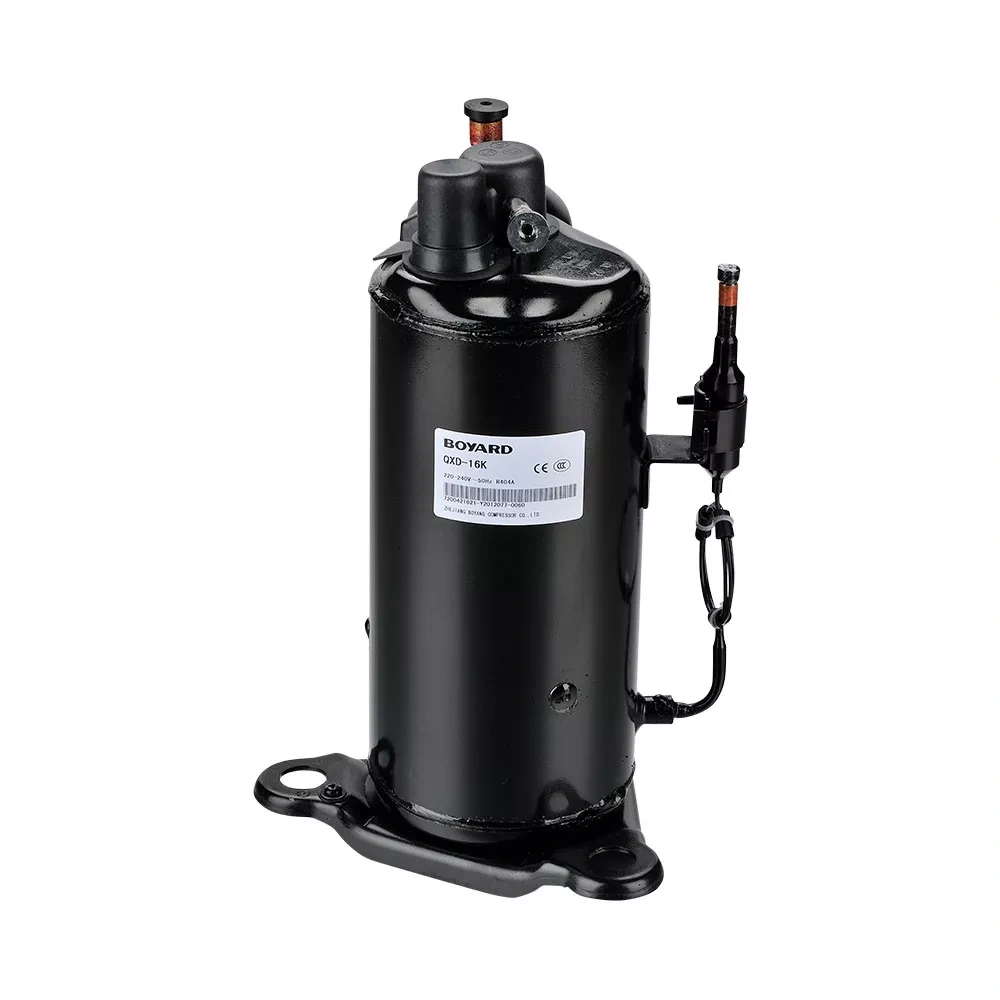

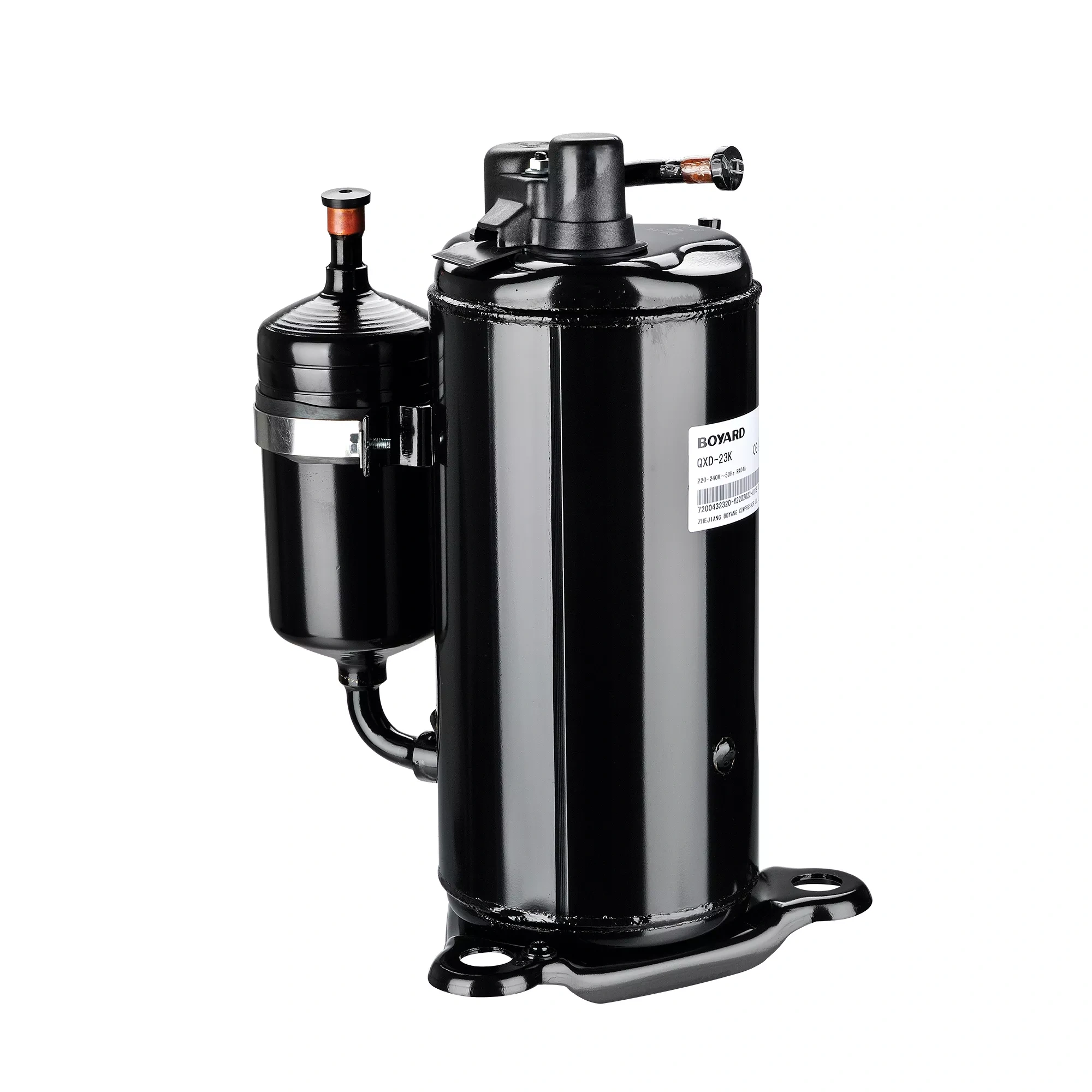

Model: KXSD176KS
Brand: BOYARD
Compressor Type: Hermetic Rotary Refrigeration Compressor
Application: MBP / LBP Commercial Refrigeration
Power Supply: 1 Phase, 220–240V
Frequency: 50Hz standard / 60Hz options available
Displacement: 17.6 cc/rev
Rated Speed @ 50Hz: 2850 rpm
Configuration: Vertical
Number of Cylinders: 2
Height: 310 mm
Refrigerants: R404A / R448A / R449A / R455A / R454C / R452A
❄️ Medium Temperature – MBP
Cooling Capacity: 2,220 W / 7,575 Btu/h
Input Power: 1,140 W
Current: 5.3 A
COP: 1.94 W/W
These performance figures are based on the specified 50Hz test conditions.
🧊 Low Temperature – LBP
Cooling Capacity: 1,080 W / 3,685 Btu/h
Input Power: 1,000 W
Current: 4.8 A
COP: 1.08 W/W
The KXSD176KS is designed to provide dependable performance across both medium- and low-temperature commercial refrigeration applications.
🔧 Key Features
- 17.6 cc/rev displacement
- 2-cylinder rotary compressor design
- Suitable for MBP and LBP refrigeration
- Single-phase power supply
- 50Hz and 60Hz options available
- Compact vertical configuration
- Multiple refrigerant compatibility
- Suitable for commercial refrigeration systems
- Designed for reliable operation in demanding refrigeration applications
🏪 Applications
The BOYARD KXSD176KS is suitable for applications including:
- Walk-in chillers
- Walk-in freezers
- Commercial refrigeration cabinets
- Display chillers and freezers
- Cold-room refrigeration systems
- Commercial condensing units
- Food and beverage refrigeration
- Supermarket refrigeration equipment
- Other medium- and low-temperature refrigeration systems
