⚙️ Main Specifications

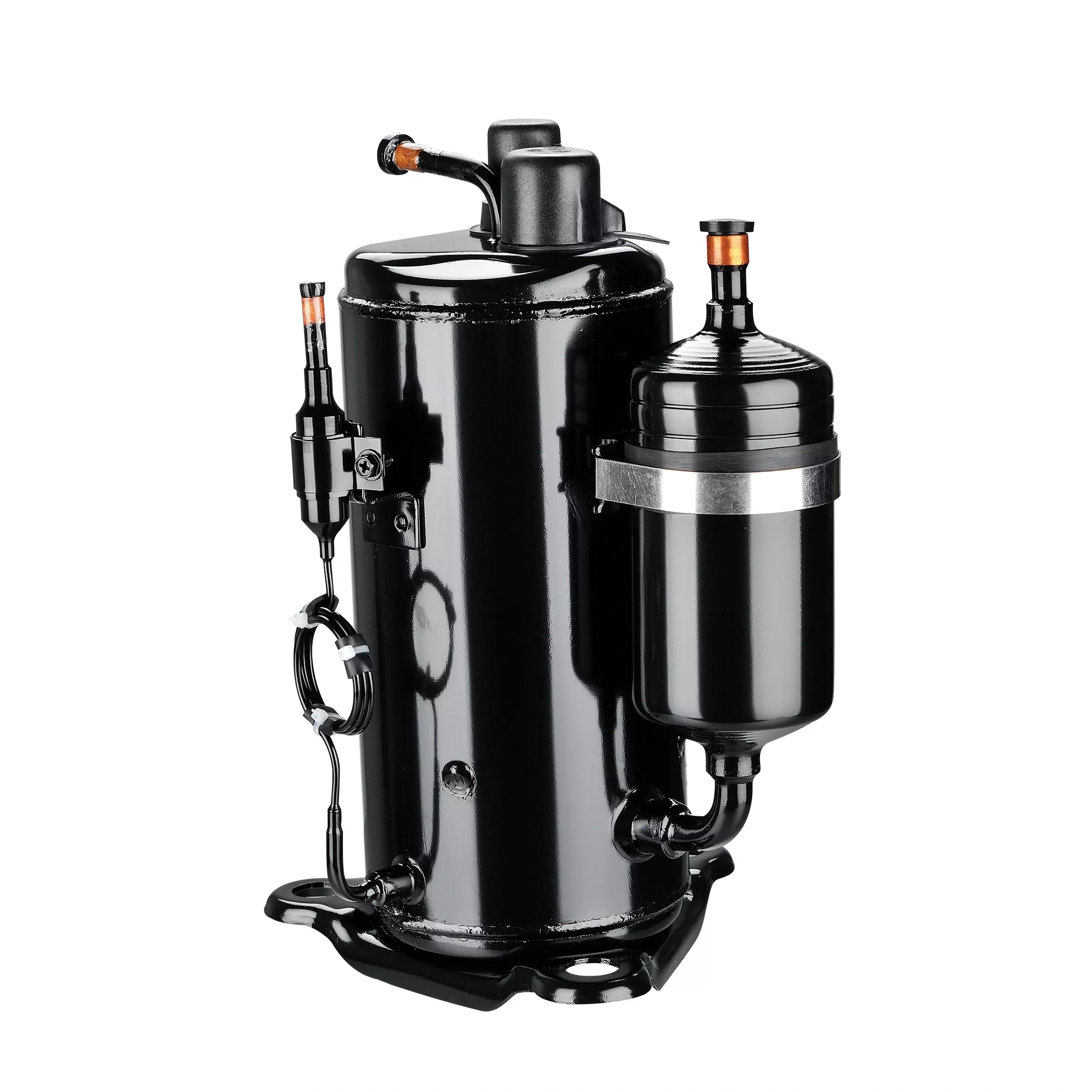

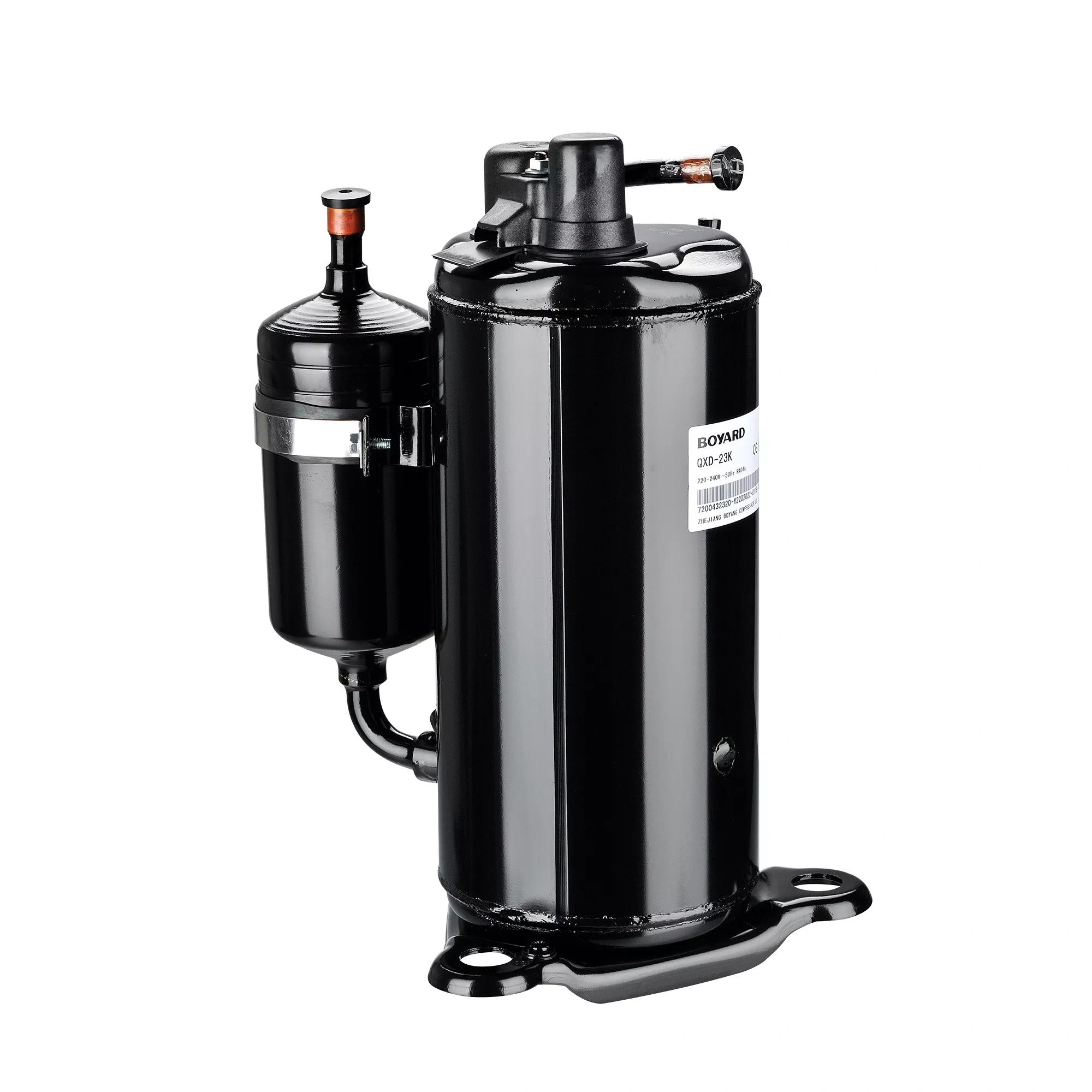

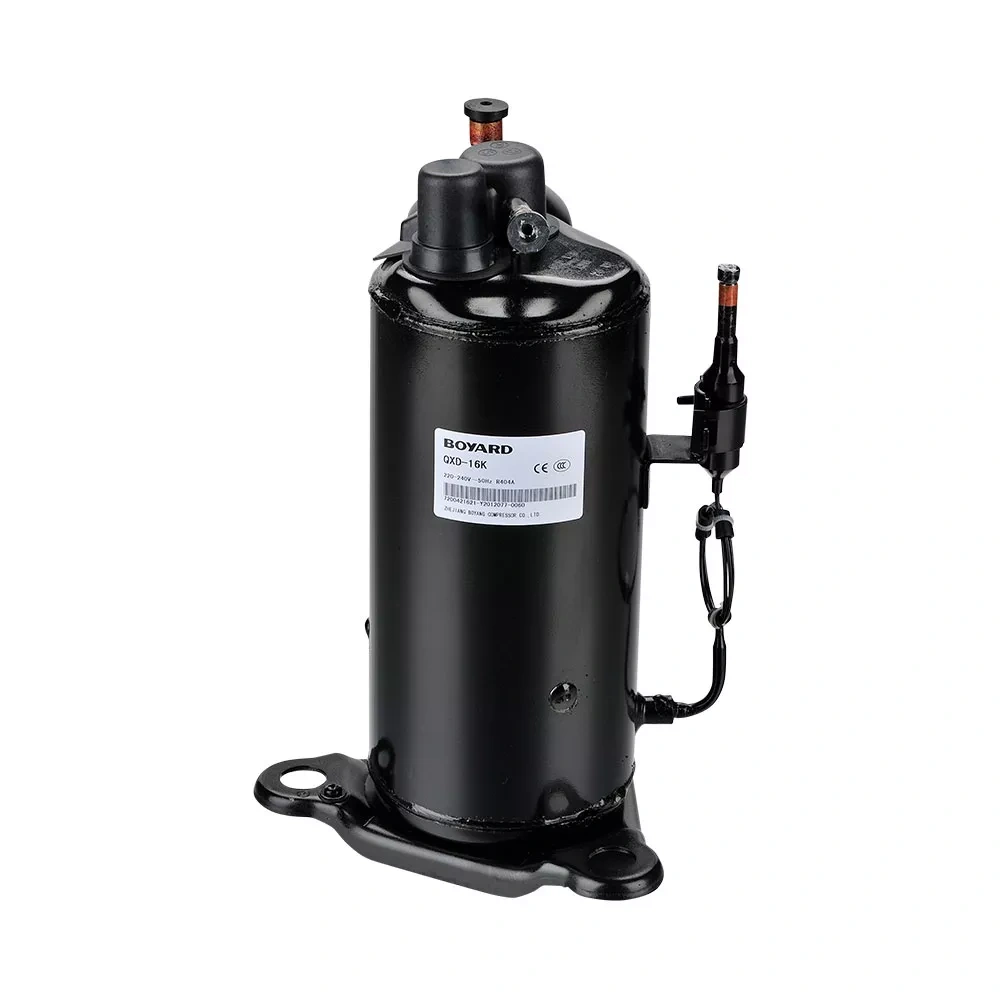

Model: KHSD203KS
Brand: BOYARD
Compressor Type: Hermetic Rotary Refrigeration Compressor
Application: MBP / LBP Commercial Refrigeration
Power Supply: 1 Phase, 220–240V
Frequency: 50Hz standard / 60Hz options available
Displacement: 20.3 cc/rev
Rated Speed @ 50Hz: 2850 rpm
Configuration: Horizontal
Number of Cylinders: 2
Height: 185 mm
Refrigerants: R404A / R448A / R449A / R455A / R454C / R452A
❄️ Medium Temperature – MBP
Cooling Capacity: 2,480 W / 8,462 Btu/h
Input Power: 1,240 W
Current: 5.7 A
COP: 2.00 W/W
These performance figures are based on the specified 50Hz test conditions.
🧊 Low Temperature – LBP
Cooling Capacity: 1,200 W / 4,094 Btu/h
Input Power: 1,060 W
Current: 4.8 A
COP: 1.13 W/W
The KHSD203KS is suitable for both medium- and low-temperature refrigeration applications where a compact horizontal compressor is required.
🔧 Key Features
- 20.3 cc/rev displacement
- 2-cylinder rotary design
- Compact horizontal configuration
- Only 185 mm in height
- Suitable for MBP and LBP refrigeration
- Single-phase power supply
- 50Hz and 60Hz options available
- Compatible with multiple refrigeration refrigerants
- Designed for compact commercial refrigeration equipment
- Suitable for applications with restricted installation height
🏪 Applications
The BOYARD KHSD203KS is suitable for:
- Commercial refrigeration cabinets
- Display chillers and freezers
- Walk-in chillers
- Walk-in freezers
- Cold-room refrigeration systems
- Compact condensing units
- Food and beverage refrigeration
- Supermarket refrigeration equipment
- Other medium- and low-temperature commercial refrigeration systems
