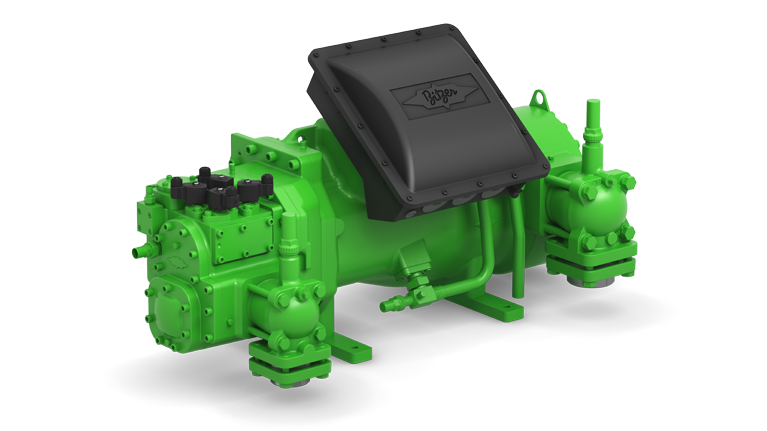

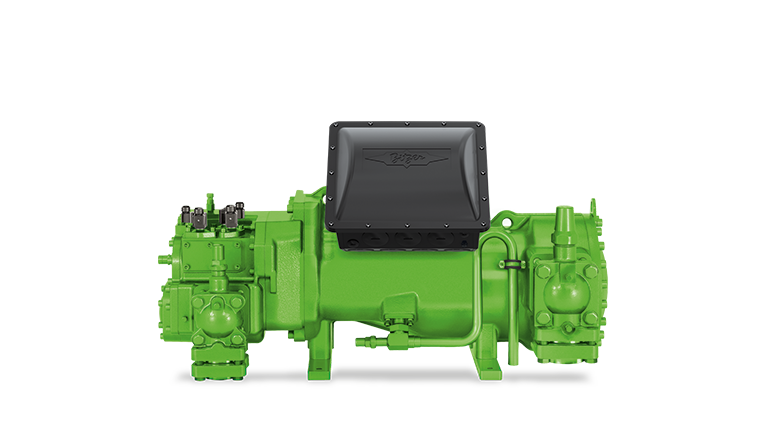

Bitzer HSN5363-30 Semi-Hermetic Screw Compressor

🔧 Technical Data Summary

• Cooling Capacity (R404A, t₀ = -28°C, t𝑐 = 45°C): 25.57 kW

• Power Input: 27.7 kW

• COP (Efficiency): 0.92

• Condenser Capacity: 43.3 kW

• Displacement (50Hz / 2900 rpm): 118 m³/h

• Displacement (60Hz / 3500 rpm): 142 m³/h

• Weight: 174 kg

• Max Pressure (LP / HP): 19 / 28 bar

• Suction Connection: 54 mm – 2 1/8”

• Discharge Connection: 42 mm – 1 5/8”

• Max Operating Current: 58.0 A

• Starting Current (Rotor Locked): 153.0 A (Y) / 266.0 A (YY)

• Max Power Input: 37.4 kW

• Sound Level @ -35°C / 40°C:

  • Sound Power: 84.0 dB(A)

  • Sound Pressure @ 1m: 76.0 dB(A)

🛢️ Oil System & Refrigerant Compatibility

• Oil Type (Standard): BSE170 (for R404A, R507A, R407A, R407F, R448A, R449A)

• Optional Oil Type: B150SH or B100 for R22

• Oil Flow Control: SE-B2 (Standard)

• Motor Protection: SE-E1 (Standard), SE-E3 (for high voltage)

✅ Why Choose the Bitzer HSN5363-30?

• Reliable performance for ultra-low temp applications down to -28°C

• Suitable for large-scale refrigeration systems with high mass flow capacity

• Standard protections include discharge temp sensor, start unloading, and oil flow monitor

• Integrated 100–70–40% capacity control for optimized energy usage

• Built to last with IP54 protection and proven Bitzer engineering

📦 Standard & Optional Features

• ✅ Suction shut-off valve

• ✅ SE-B2 oil control & SE-E1 motor protection

• ✅ Start unloading system

• ✅ Capacity control: 100–70–40%

• 🔧 Optional: Discharge shut-off valve, ECO shut-off valve connection

🚚 Shipping & Availability

• ✅ Standard voltage: 380–415V / 50Hz (other voltages upon request)

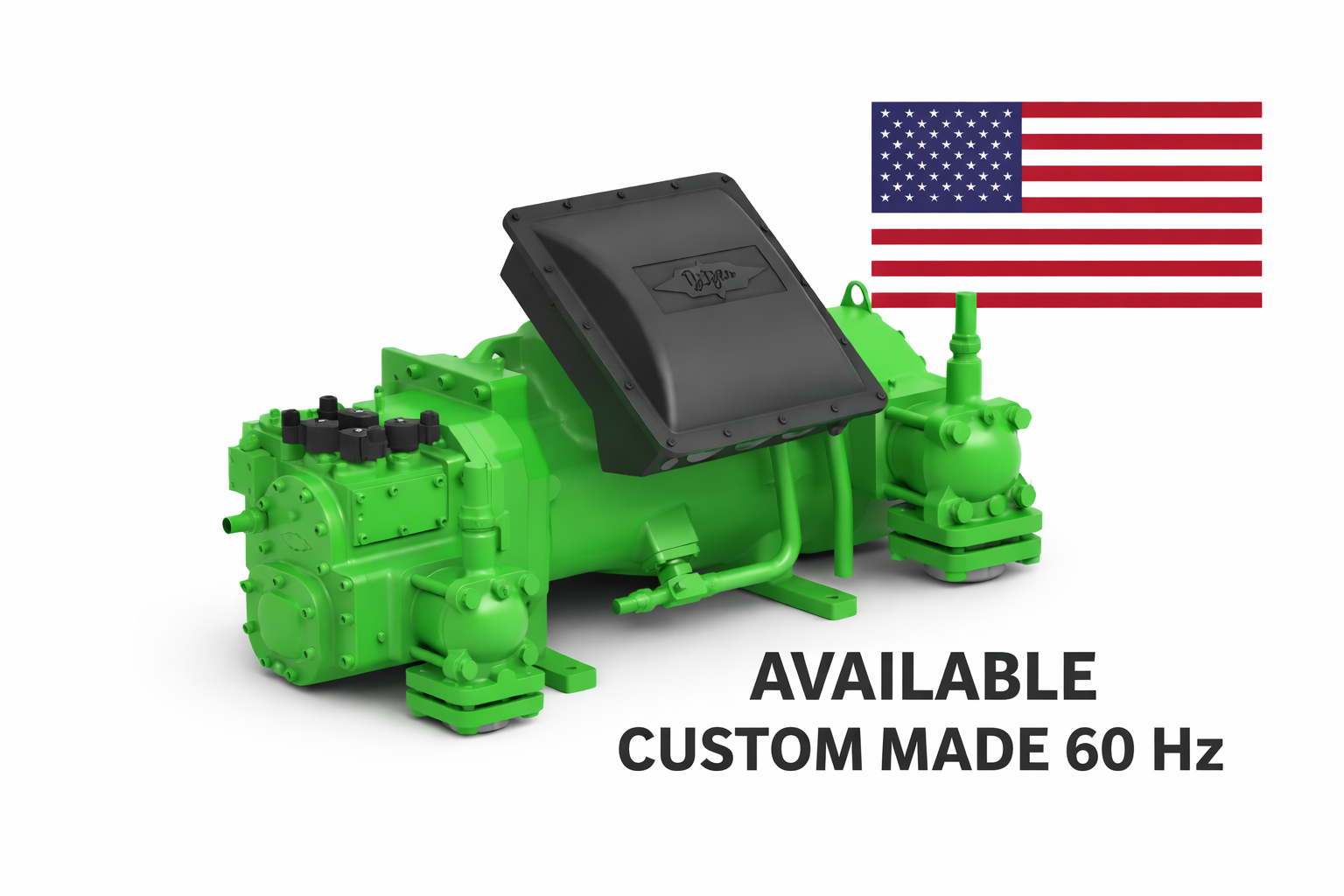

• ⚙️ Custom 60Hz builds – available with 3–4 week production lead time

• 📦 Export-ready packaging

• 🌍 Delivery by sea, air, or express courier worldwide

📥 Need More Details?

Request the full PDF with wiring diagrams, installation dimensions, and performance tables.

Contact our team for expert advice or bulk order pricing.
